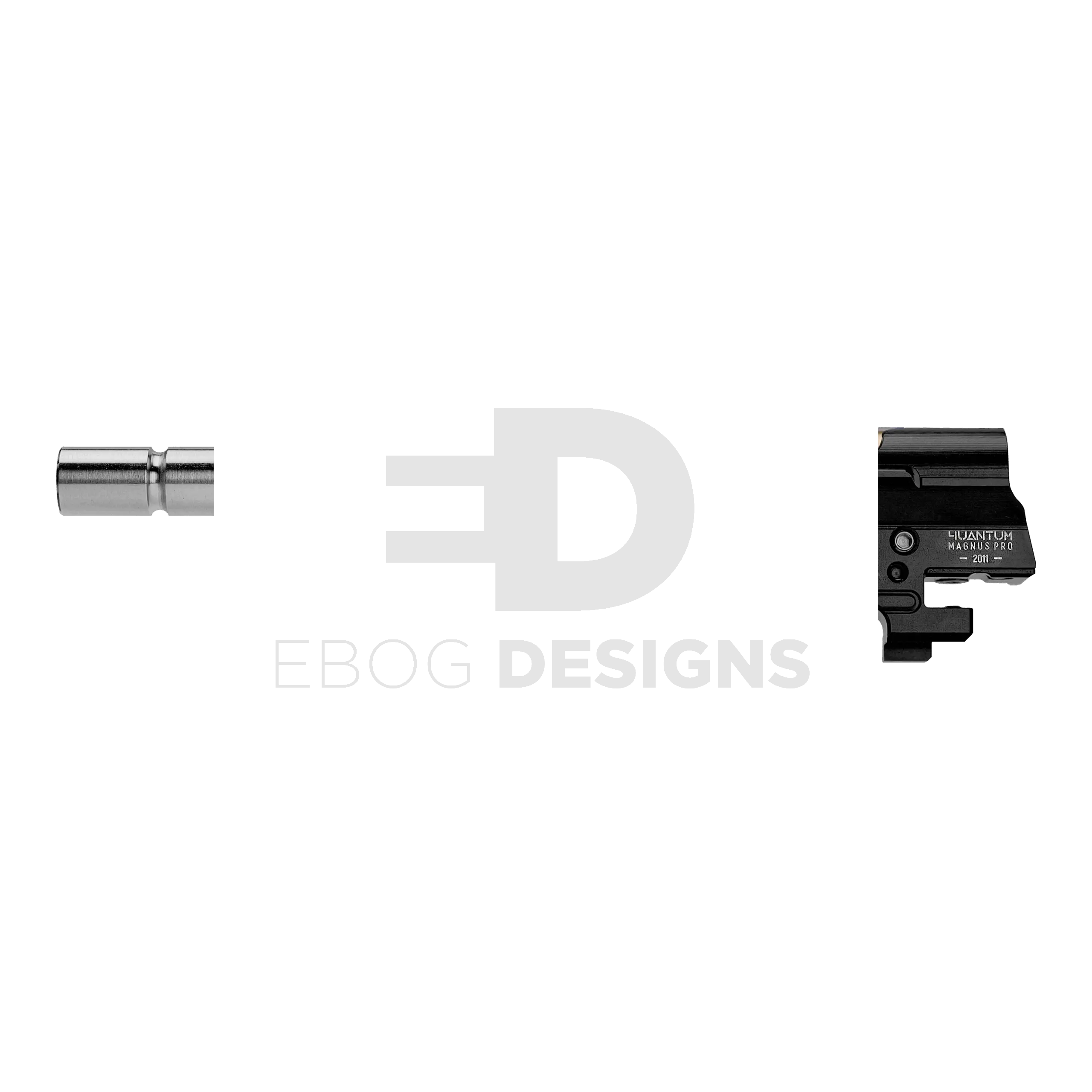

4uantum Magnus Pro 2011 Hi-Capa hop-up chamber side profile beside a steel barrel collar

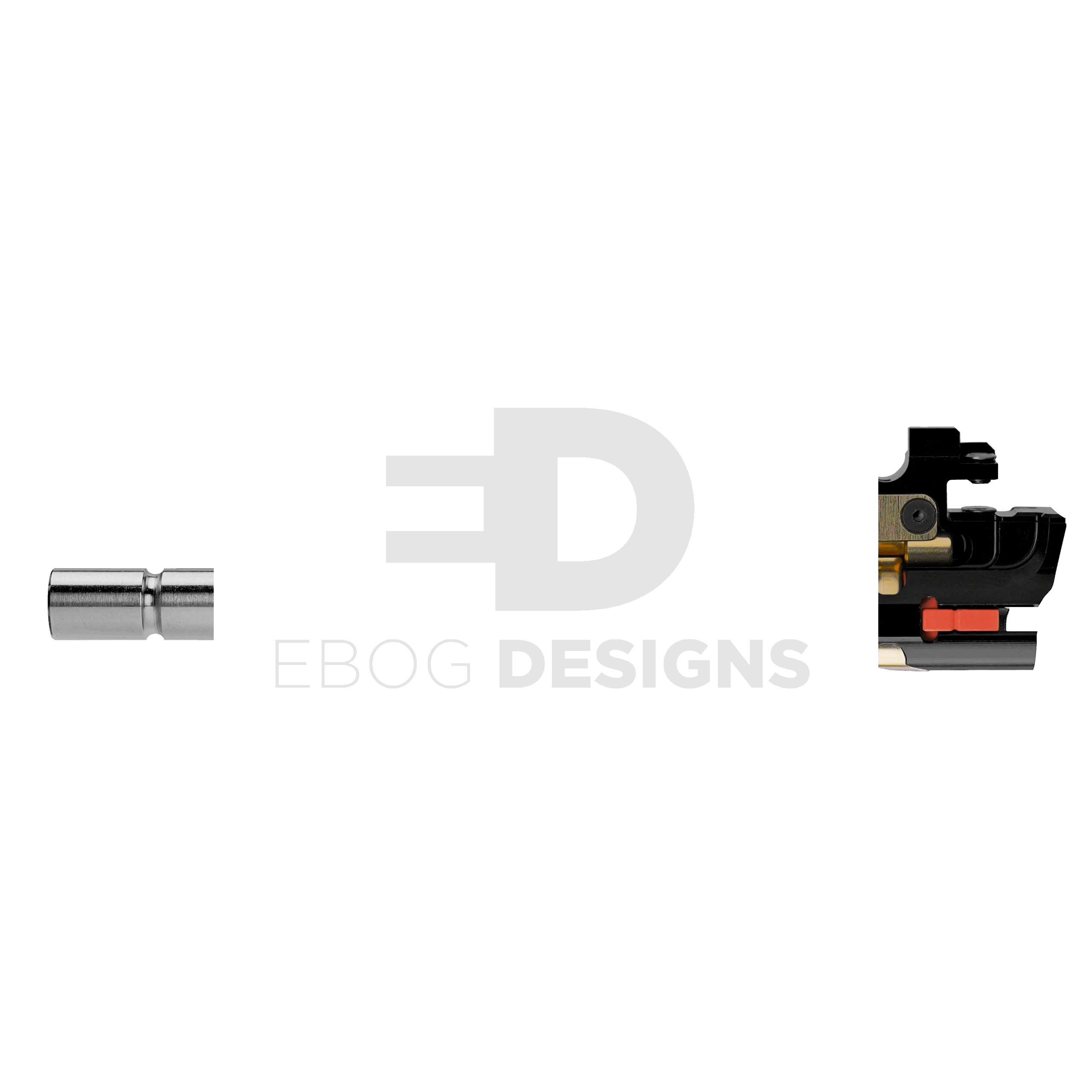

4uantum Magnus Pro 2011 hop-up chamber cutaway showing the internal TDC mechanism with brass adjuster and red hop nub

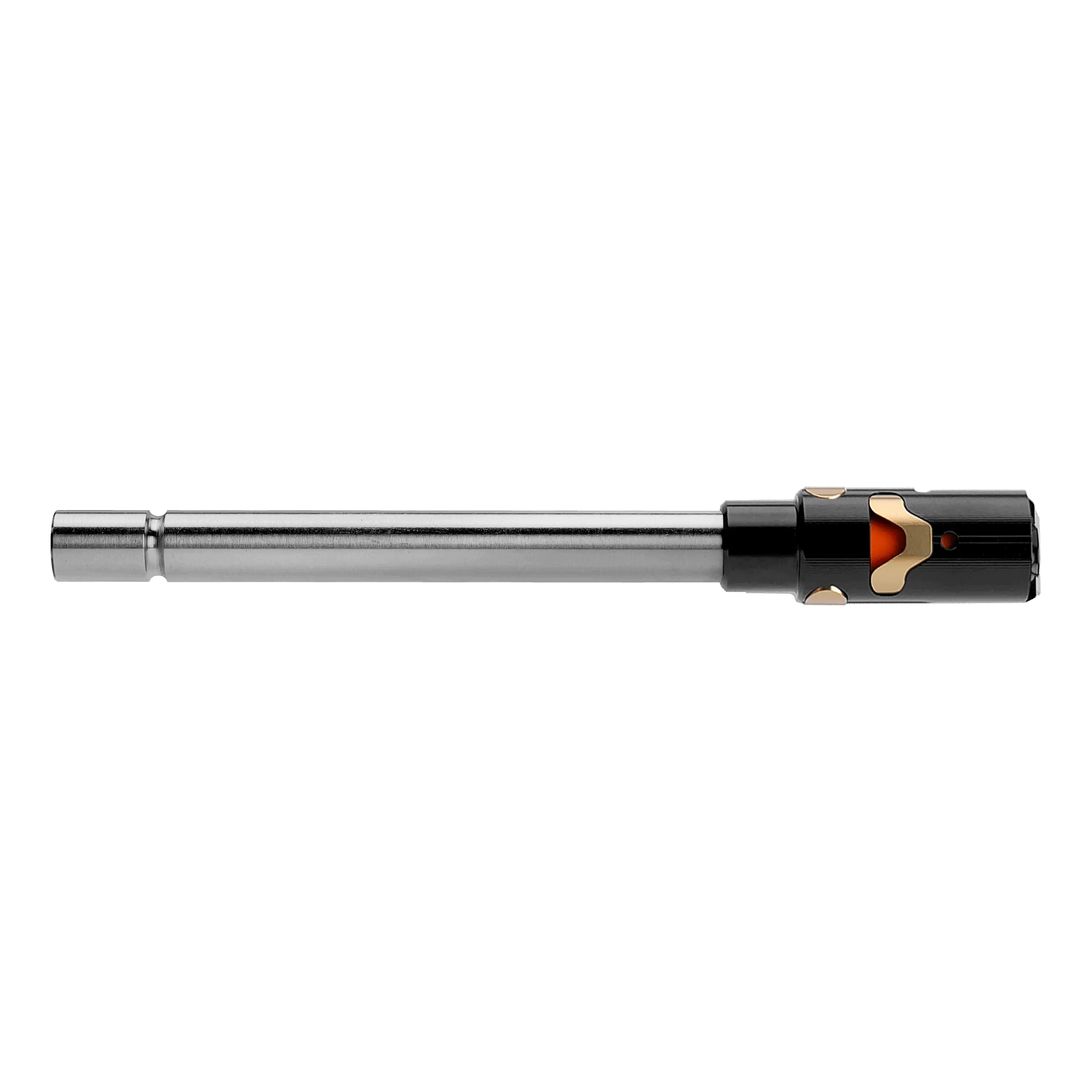

4uantum Magnus Pro 2011 hop-up chamber mounted on an inner barrel, end-on view showing the orange bucking and brass collet
4uantum Magnus Pro 2011 hop-up chamber installed on an inner barrel showing the underside hop adjustment detail
4uantum Magnus Pro 2011 hop-up chamber retail packaging, branded Magnus Pro 4uantum Industries 1911/2011 box

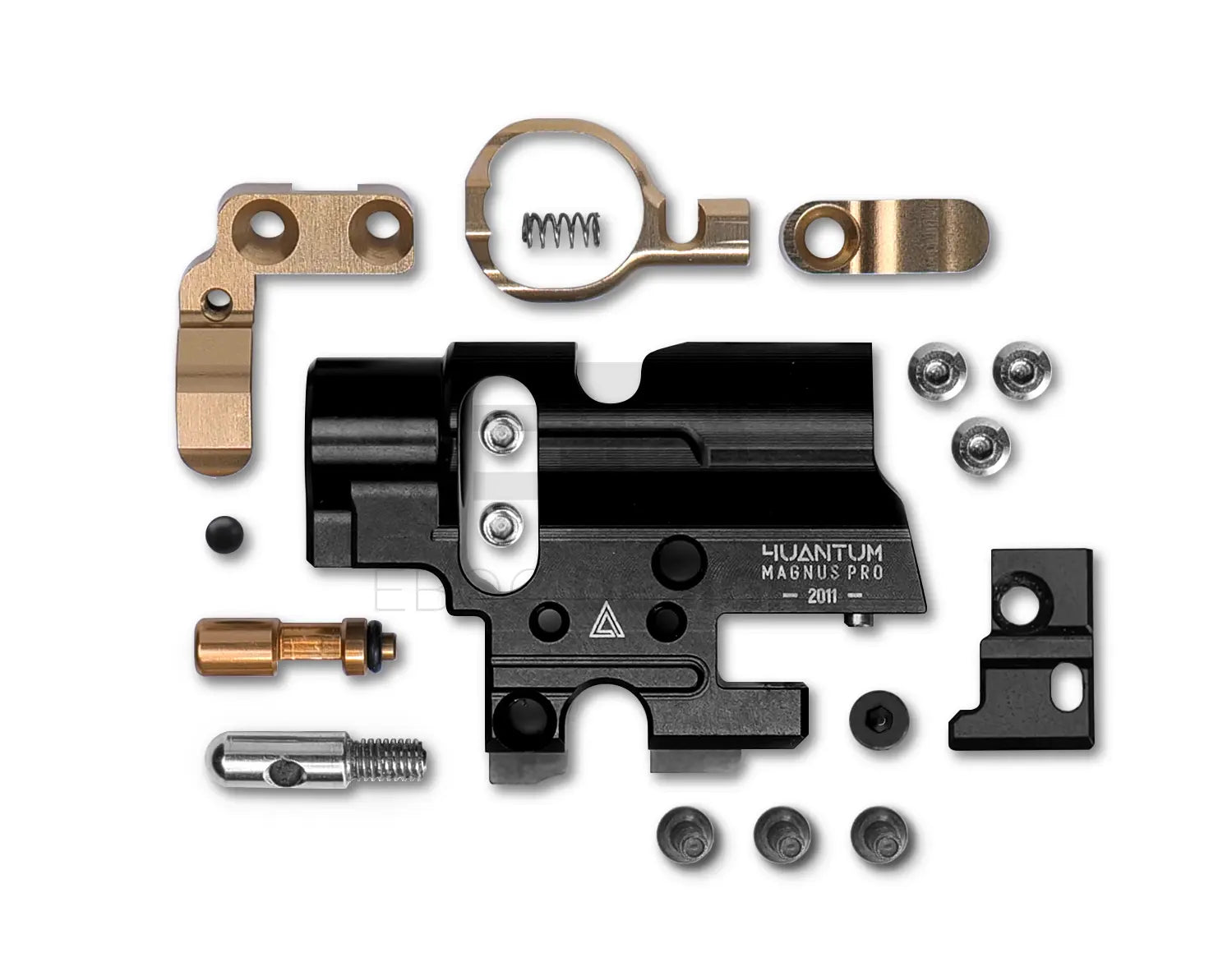

4uantum Magnus Pro 2011 hop-up chamber full parts breakdown, black chamber body with brass arms, springs, collet, bearings and screws laid out

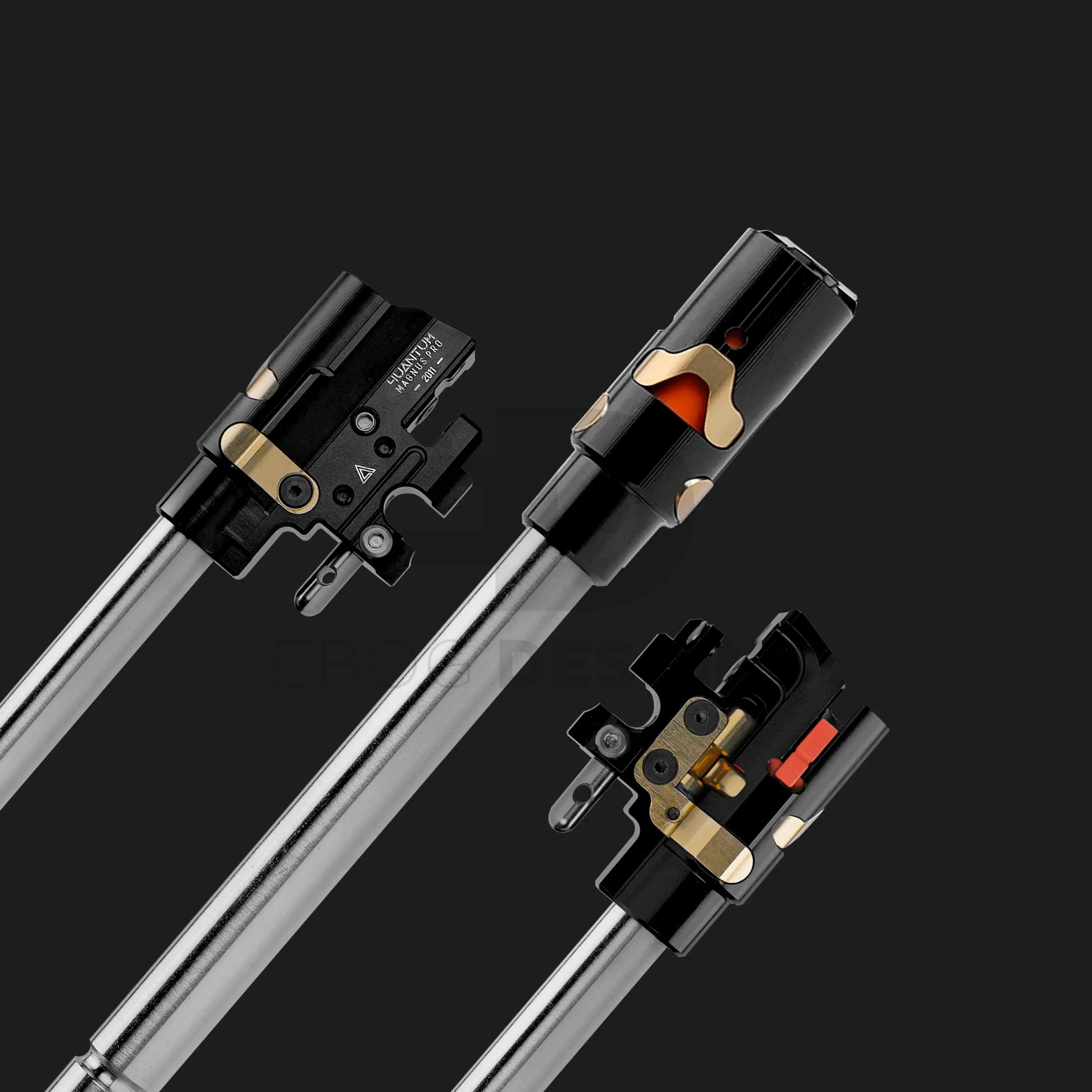

4uantum Magnus Pro 2011 hop-up chambers fitted to inner barrels showing the orange bucking and brass collet
4uantum Magnus Pro 2011 precision TDC hop-up chamber for Hi-Capa and 1911, black body with brass TDC adjustment wheel
4uantum Magnus Pro 2011 Hi-Capa hop-up chamber shown from another angle
4uantum Magnus Pro 2011 Hi-Capa hop-up chamber side profile beside a steel barrel collar
4uantum Magnus Pro 2011 hop-up chamber cutaway showing the internal TDC mechanism with brass adjuster and red hop nub
4uantum Magnus Pro 2011 hop-up chamber mounted on an inner barrel, end-on view showing the orange bucking and brass collet
4uantum Magnus Pro 2011 hop-up chamber installed on an inner barrel showing the underside hop adjustment detail
4uantum Magnus Pro 2011 hop-up chamber retail packaging, branded Magnus Pro 4uantum Industries 1911/2011 box
4uantum Magnus Pro 2011 hop-up chamber full parts breakdown, black chamber body with brass arms, springs, collet, bearings and screws laid out
4uantum Magnus Pro 2011 hop-up chambers fitted to inner barrels showing the orange bucking and brass collet

4uantum Magnus Pro 2011 Precision TDC Hop Up Chamber (Hi-Capa/1911)

Price
£74.99
Tax included. Shipping calculated at checkout.

Product Information

Magnus Pro 2011 Hop Up Chamber

MAGNUS PRO 2011 PRECISION TDC HOP CHAMBER (Hi-Capa/1911 GBBs)

Machined from solid 7075 aluminium billet, The MagnusPro 2011 Hop-Up chamber uses a true vertical TDC (Top-Dead-Center) movement. Which means regardless of your hop-up setting, the pressure point remains in the same position for consistent results.

Featuring over 4 patented designs, the MagnusPro 2011 unlocks your GBB pistol’s potential with adjustable pitch & yaw for perfect barrel alignment. The side and frame take up screws remove all excess tolerance between the hop chamber to achieve rock-solid mounting. Special barrel fixture blocks hold in the inner barrel in place without exerting uneven force, preventing misalignment and damage to the inner barrel.

Unique cam shaft design allows you to make hop up adjustments without the need for disassembly. Simply lock open the slide and adjustments can be made through the ejection port. Upon disassembly, a lock down mechanism can be used to adjust the resistance of your hop-up adjustment or lock it down completely.
