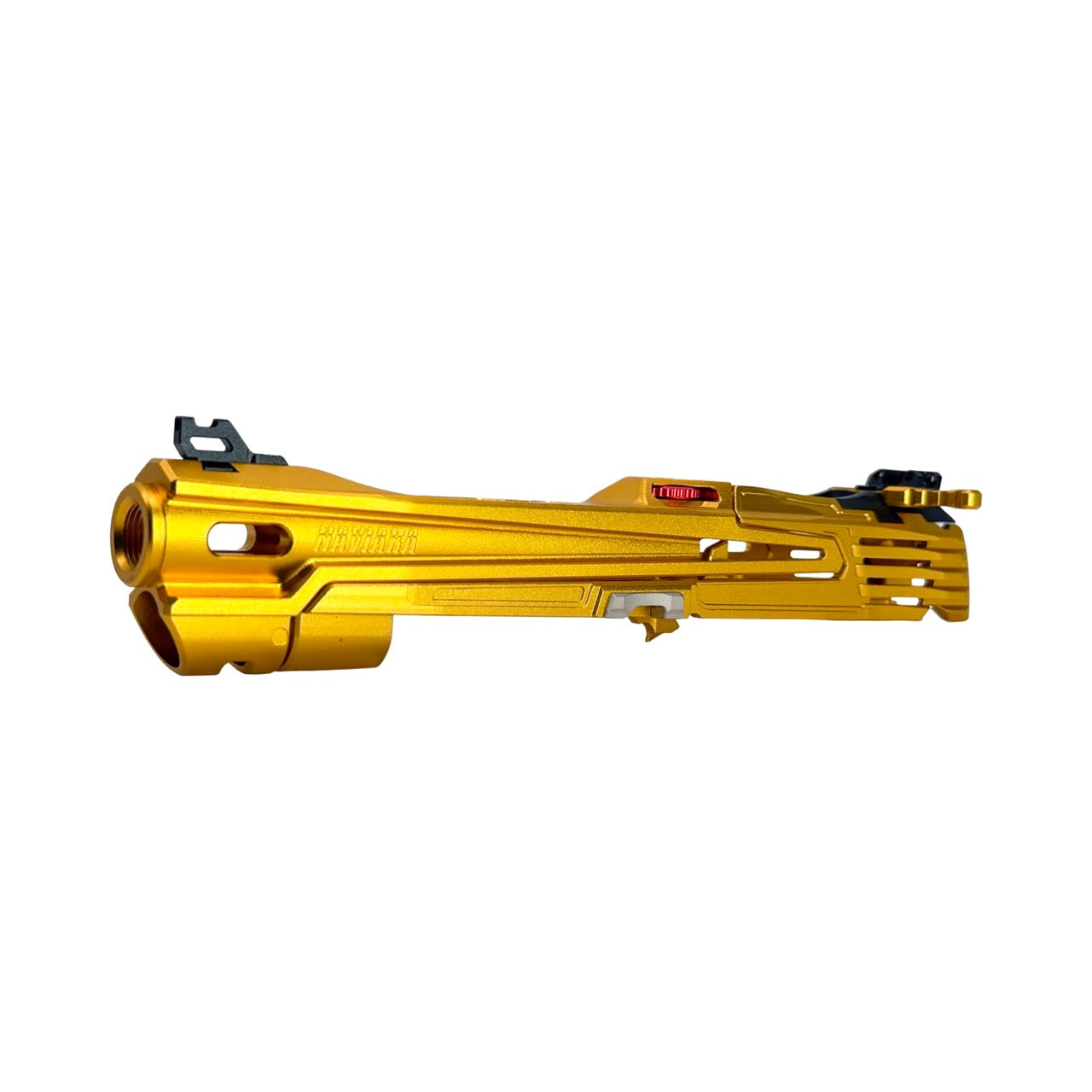

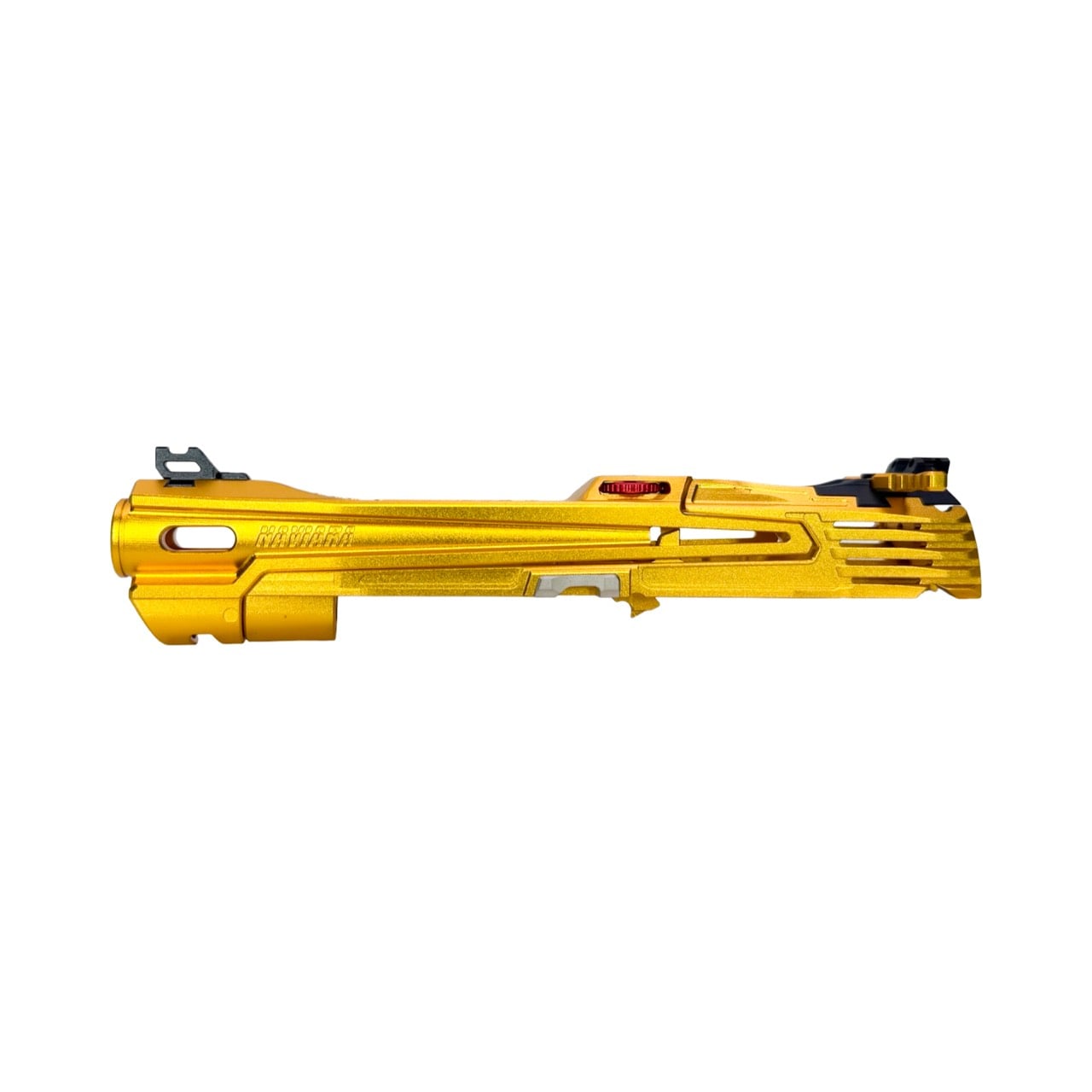

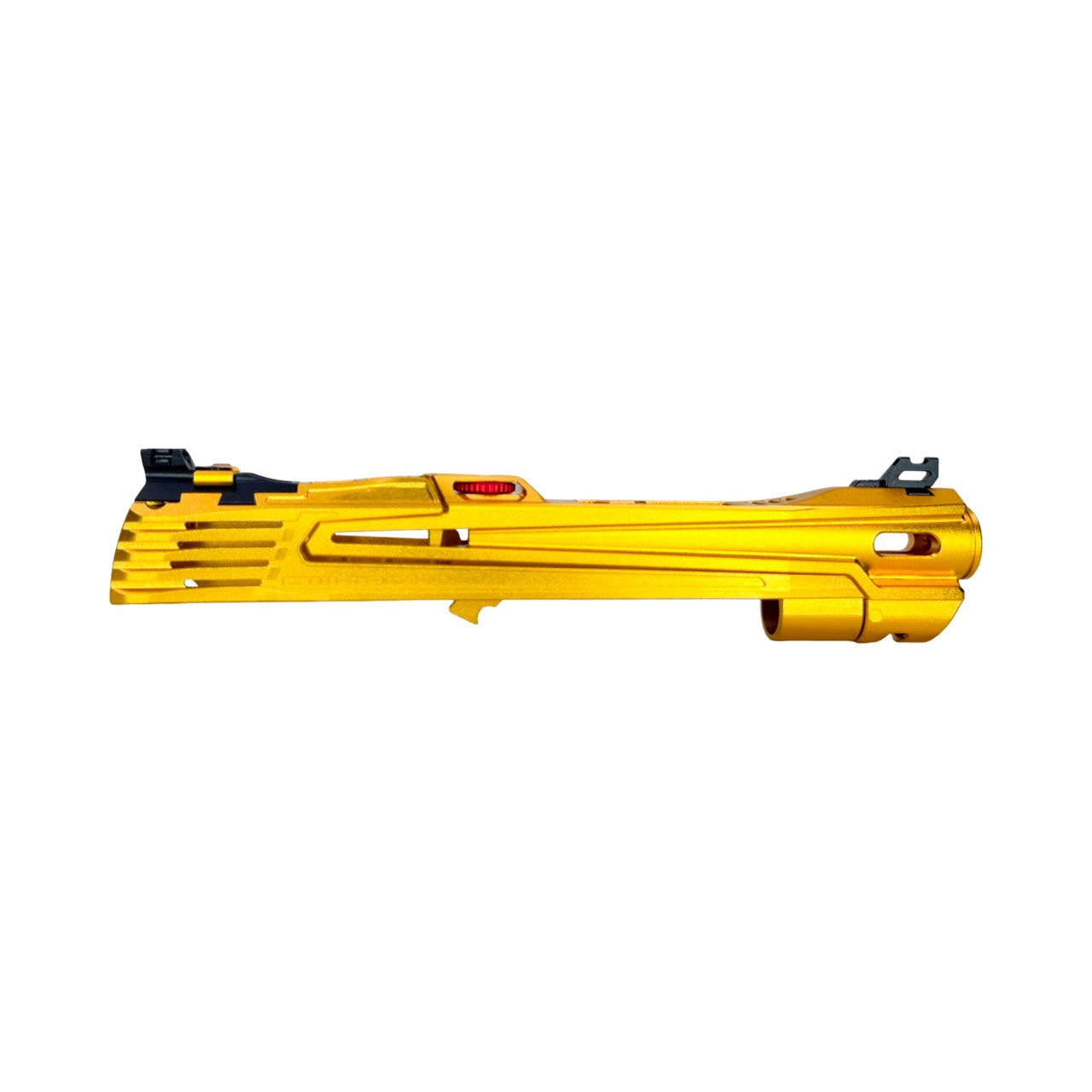

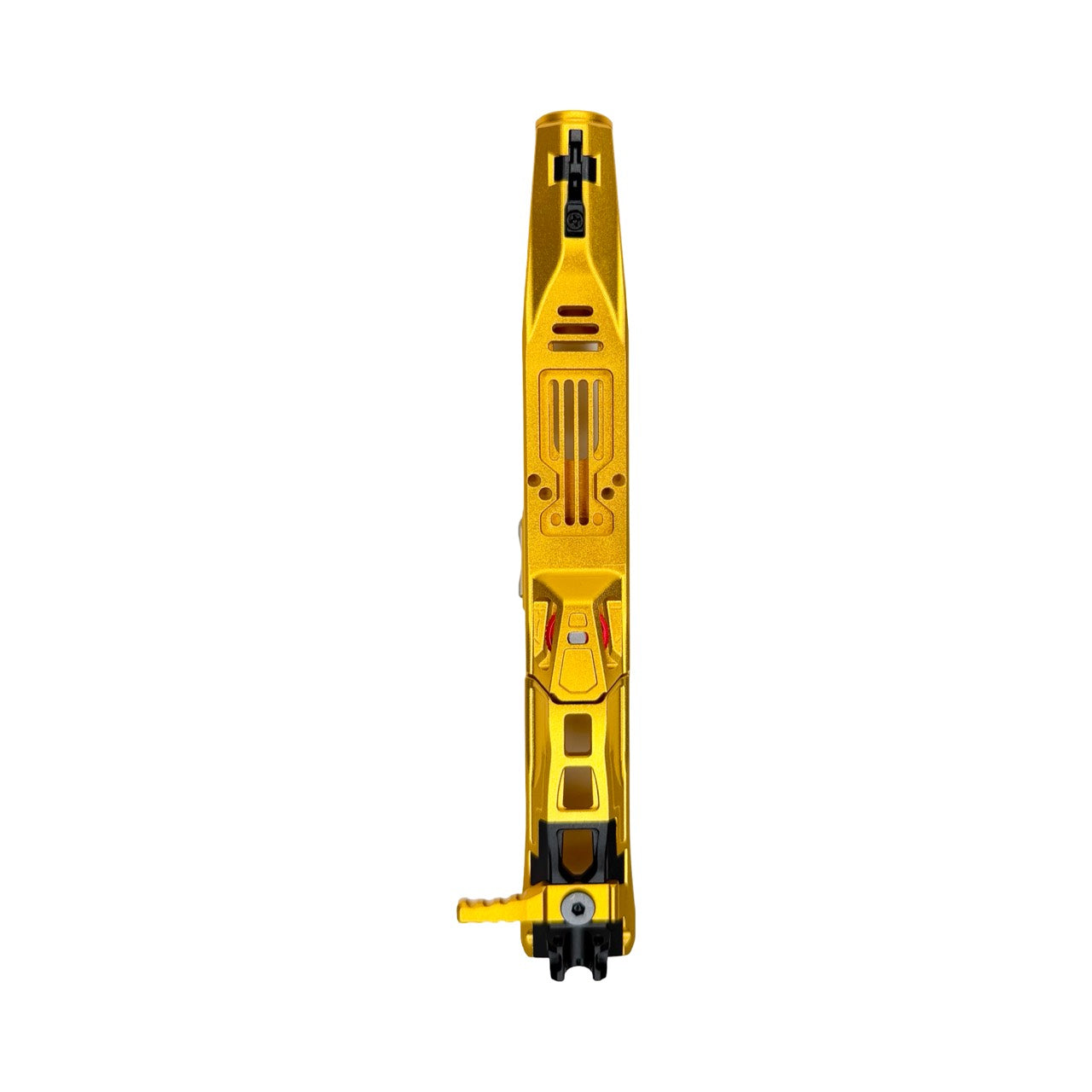

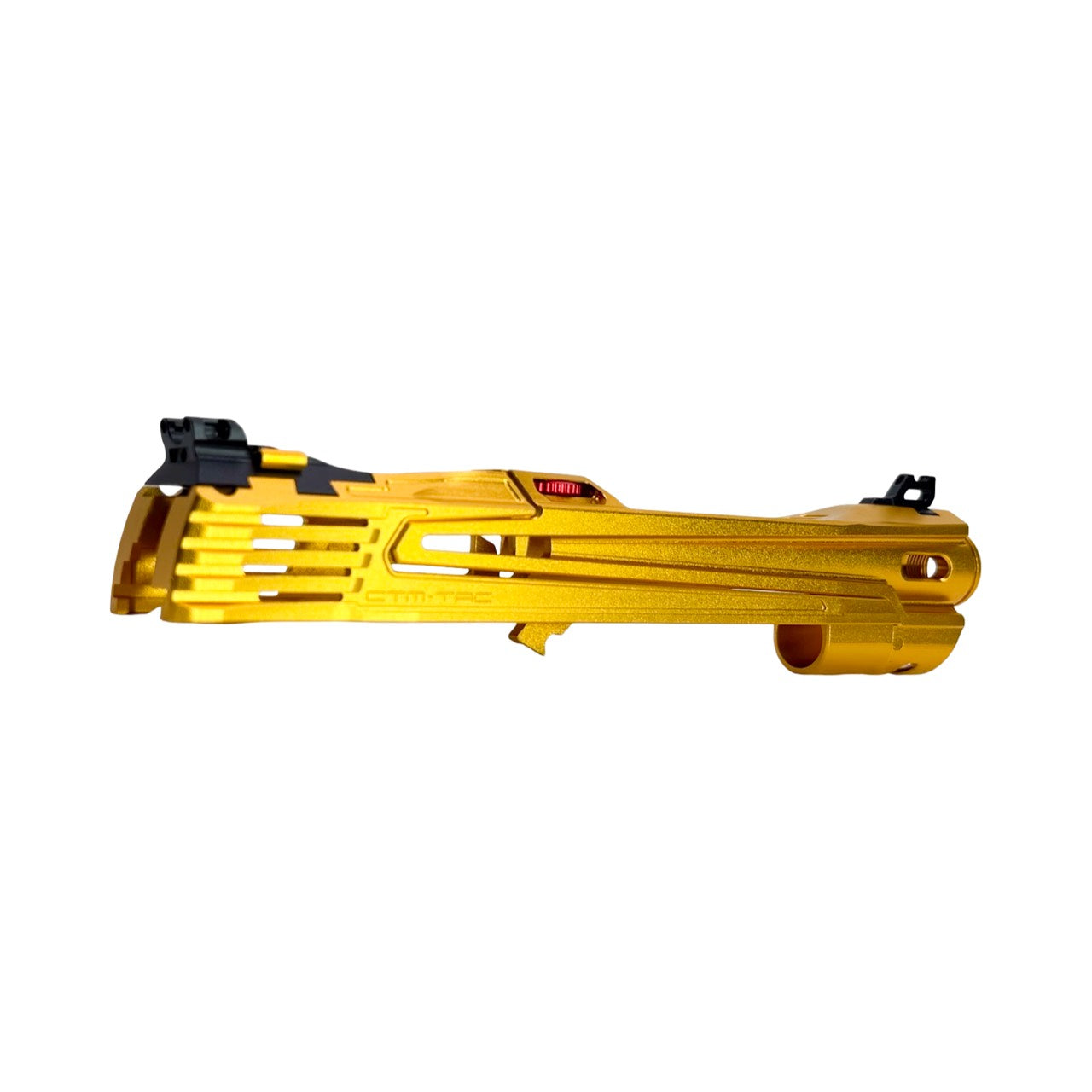

CTM - NAVIARA TM Hi-Capa 5.1 CNC Split Slide - Gold (Inc. Enhanced Nozzle, Short Stroke Kit, Springs + More)

• Material: 6061 Aluminium
• Weight: 140g
• Colour: Gold

"NAVIARA draws inspiration from navigation and the elegance of a yacht. The segment 'NAVI' reflects the spirit of direction, control, and discovery, while 'ARA', echoing the word Aerial, evokes smoothness, elevation, and refined form—like the flowing lines of a luxury vessel. Like an elegant yet powerful craft cutting through the ocean, NAVIARA represents Navigation, Stability, Evolution, and the Future—a symbol of precision, freedom, and forward vision."

For this product, we put in an enormous amount of effort. In the face of intense competition among so many Hi-Capa manufacturers, we focused on how to make our product stand out. In terms of exterior design, we broke away from conventional frameworks and experimented with a uniquely styled split-slide design, aiming to present an elegant appearance combined with precise performance.

Beyond the external design, we also had to overcome challenges related to durability and operational smoothness. Before moving into full-scale production, we subjected the same set of samples to rigorous testing, firing approximately 40,000 to 50,000 rounds. We needed to ensure that this product is not only innovative and forward-thinking in its design, but also delivers outstanding durability and reliable performance in actual use.

The Hi-Capa 5.1 Split Slide – NAVIARA is more than just a single product — it's our way of showing genuine appreciation to every customer who supports us. We've carefully included a complete set of parts and accessories, so when you receive it, you feel satisfied, ready, and excited to build.

Features

• High-precision 6061 CNC aluminium.
• Split-Slide and fixed barrel design, lightweight and agile.
• TDC wheel design for easy and precise adjustment, highly adaptive to different fields.
• Detachable ambidextrous charging handle for easy operation in various situations.

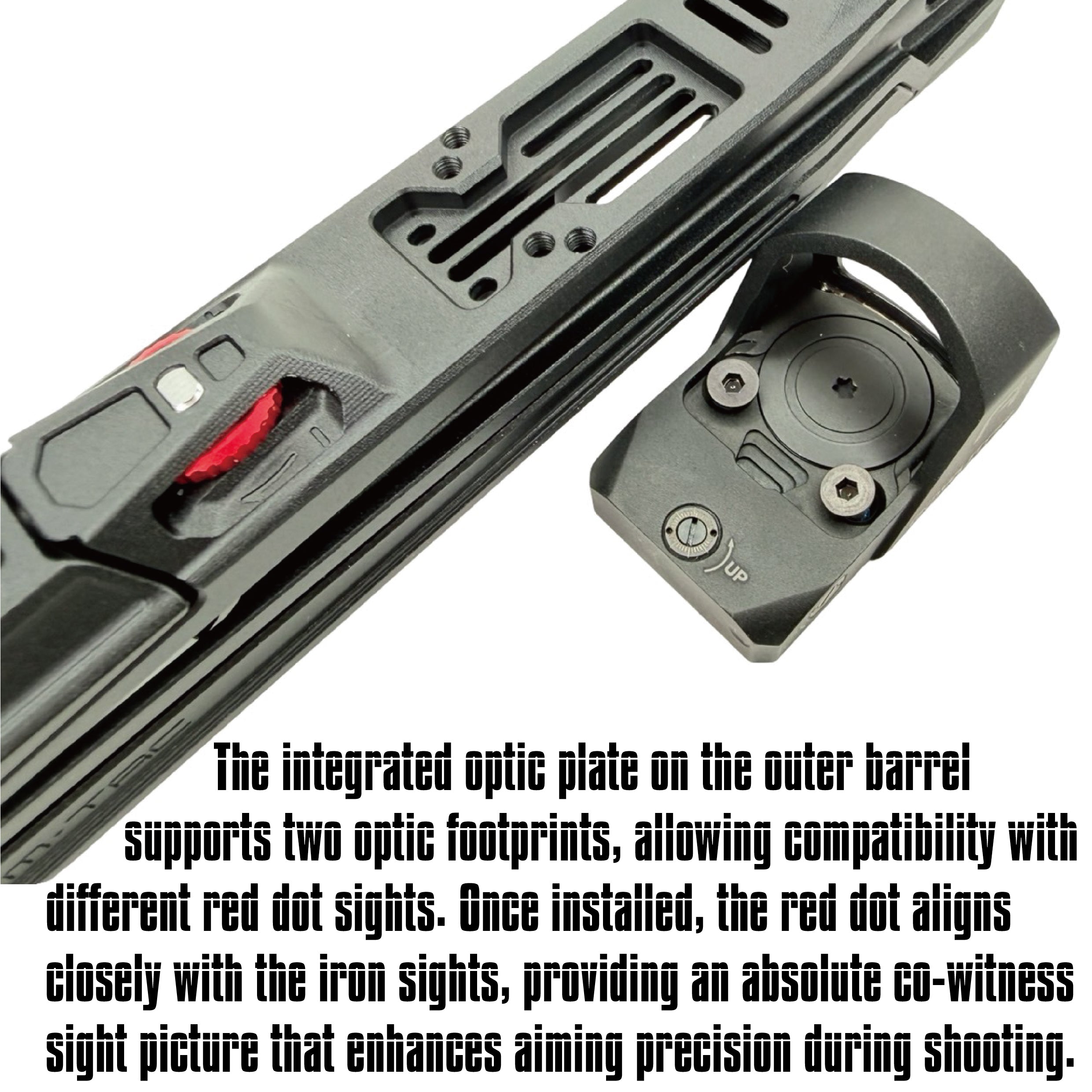

• Integrated optic plate on the outer barrel provides an absolute co-witness sight picture.

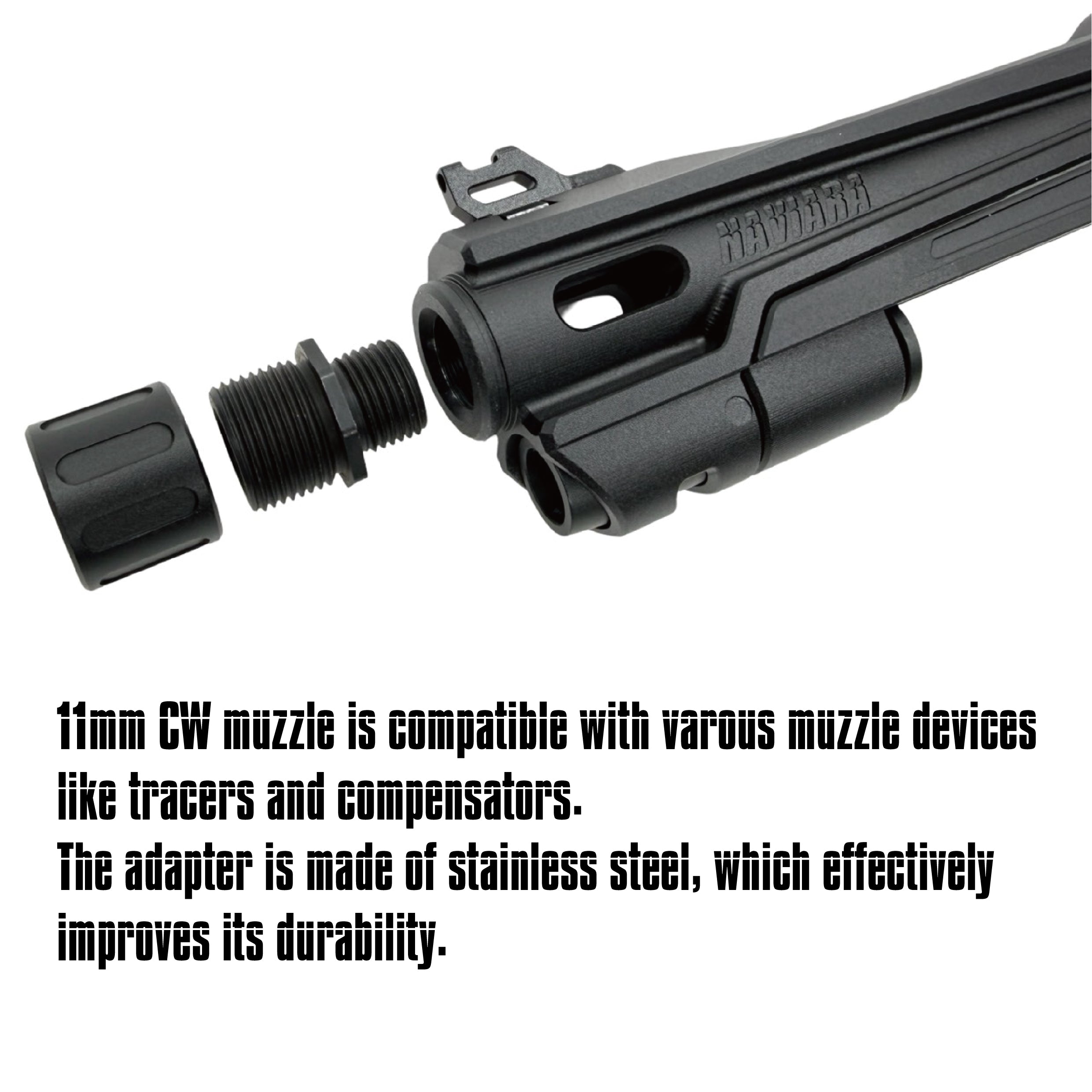

• 11mm muzzle with a 14mm to 11mm stainless steel adapter and a thread cap for various muzzle devices like tracers. Note: Please take down the set screw before removing the thread adapter.
• Compatible with original Tokyo Marui 5.1 / 4.3 spec middle frame.

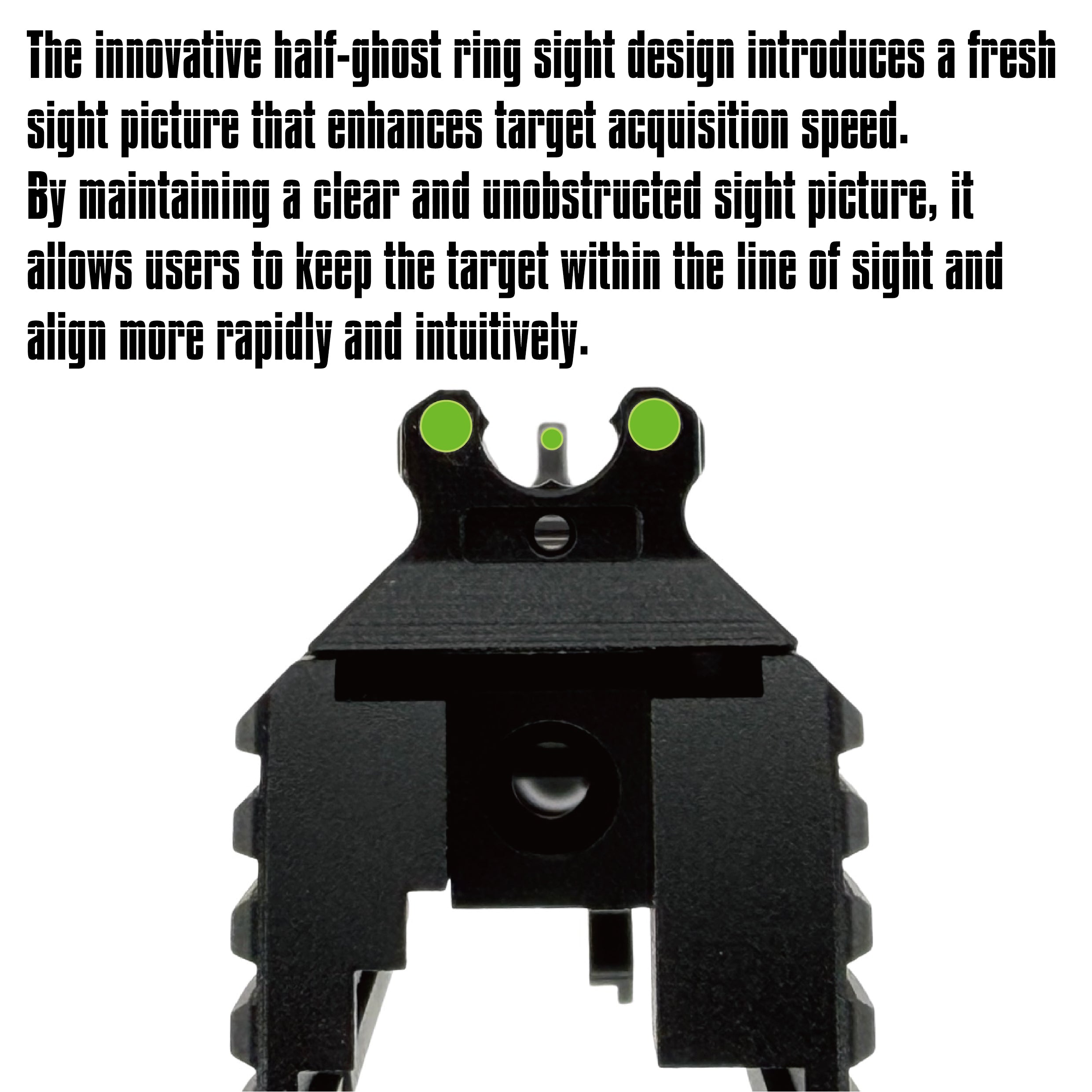

• Innovative half-ghost ring sight design for faster, more intuitive target acquisition.
• Compatible with Tokyo Marui original iron sights.
• Included Short Stroke Kit provides faster and more responsive operation. Note: Please always install the short stroke kit with the NAVIARA.
• Included enhanced nozzle spring for smoother feeding.
• Included enhanced nozzle. Note: For detailed operating information, please refer to the Enhanced Nozzle Set For TM Hi-Capa product page.
• Included steel guide rod for Hi-Capa 5.1.

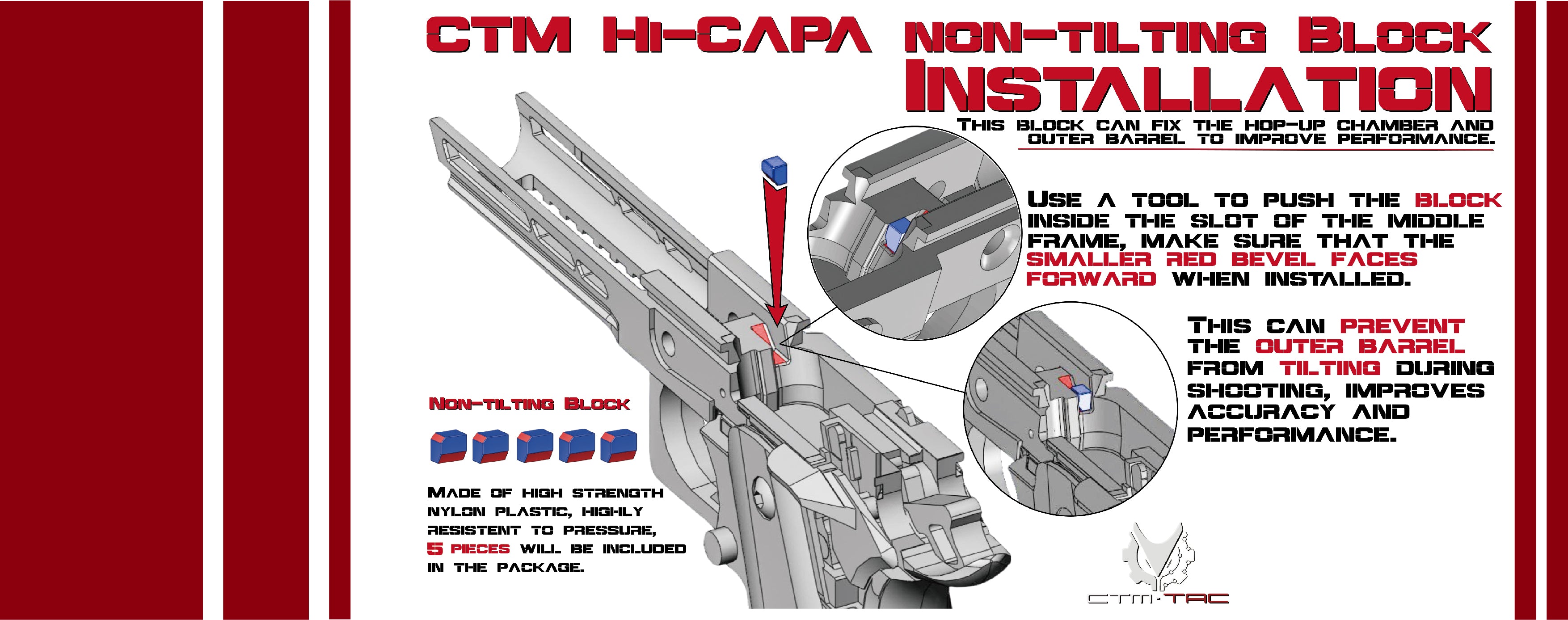

• Non-tilting block design prevents the outer barrel from tilting.

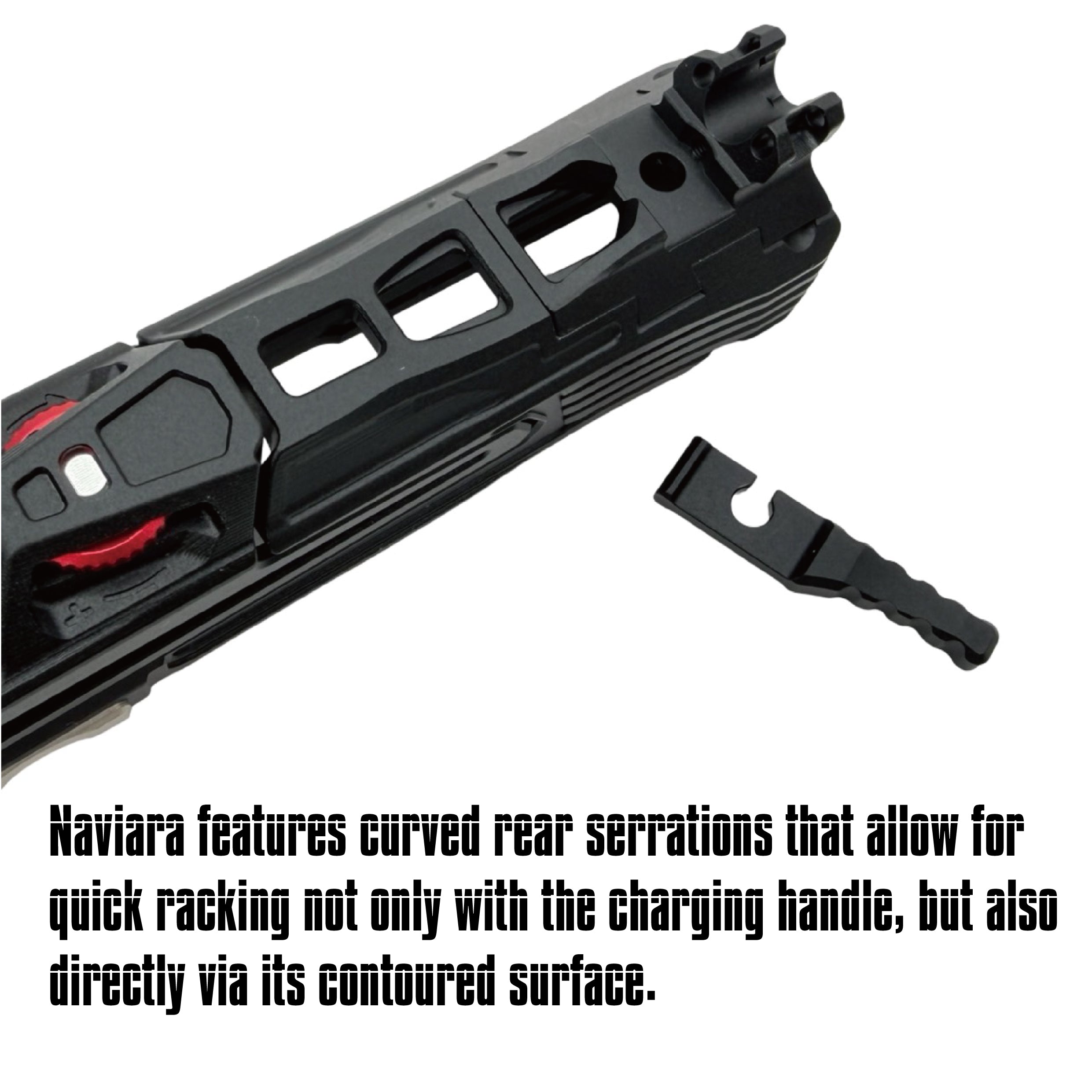

• Curved rear serrations allow for quick racking with the charging handle or directly via the contoured surface.

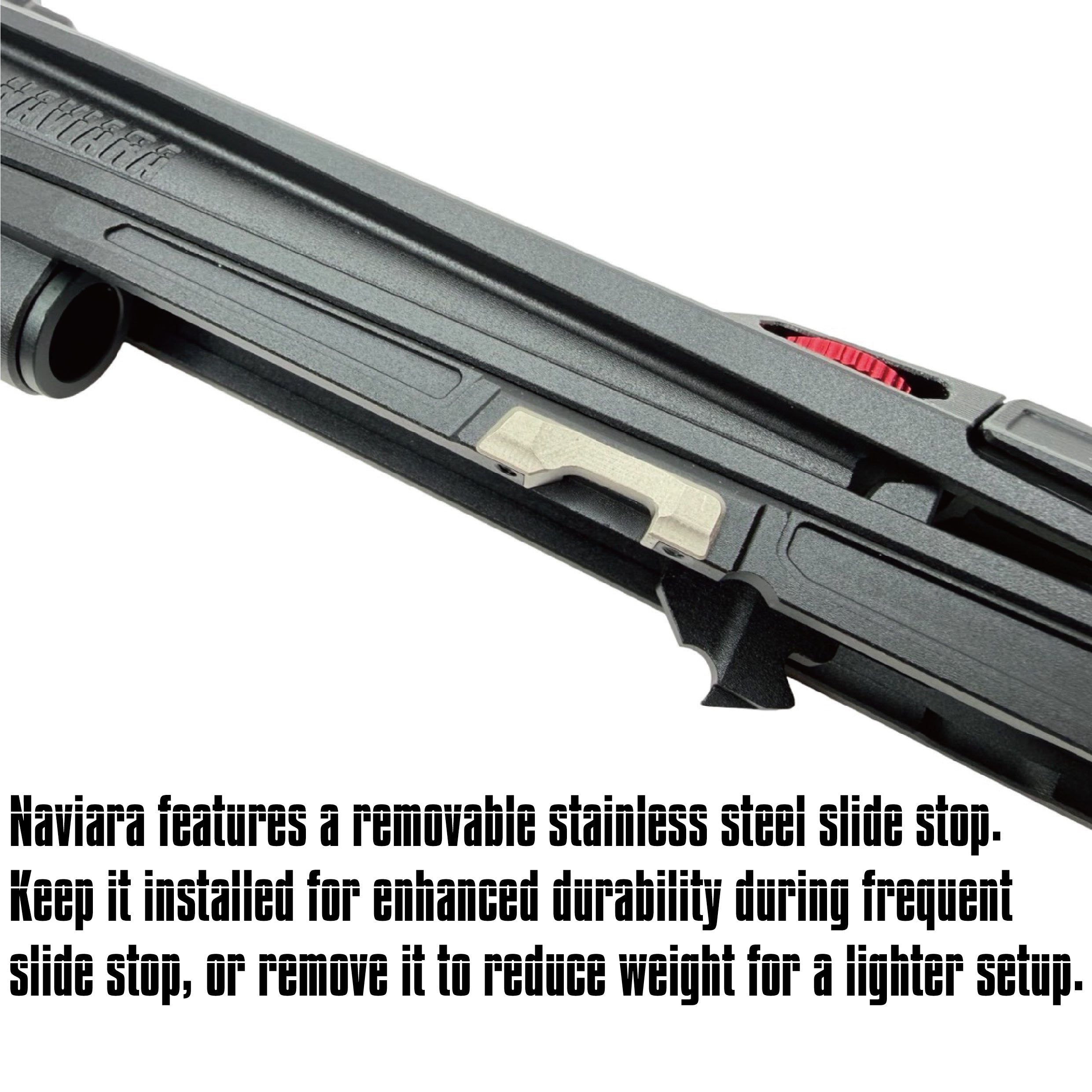

• Removable stainless steel slide stop — keep installed for durability, or remove to reduce weight.

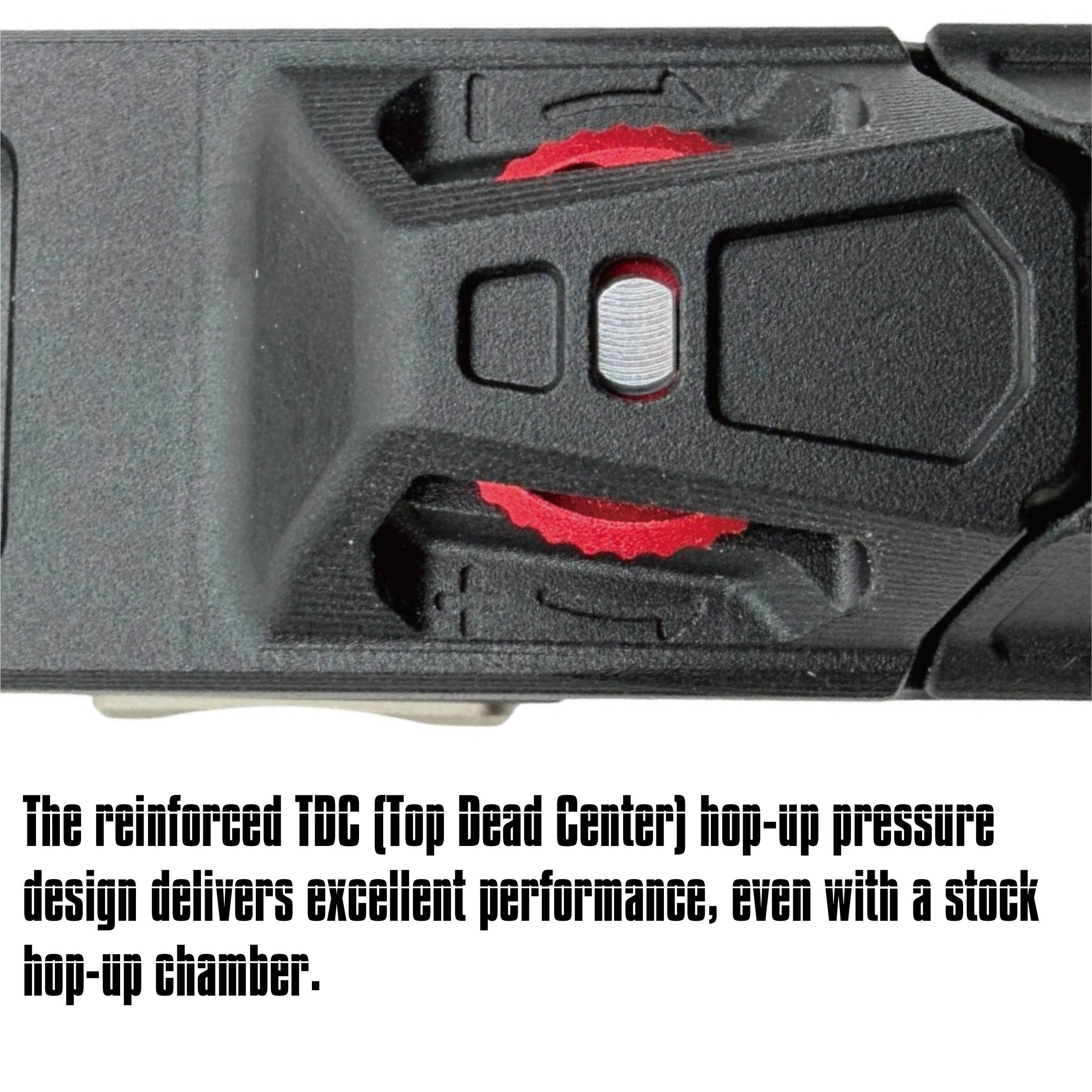

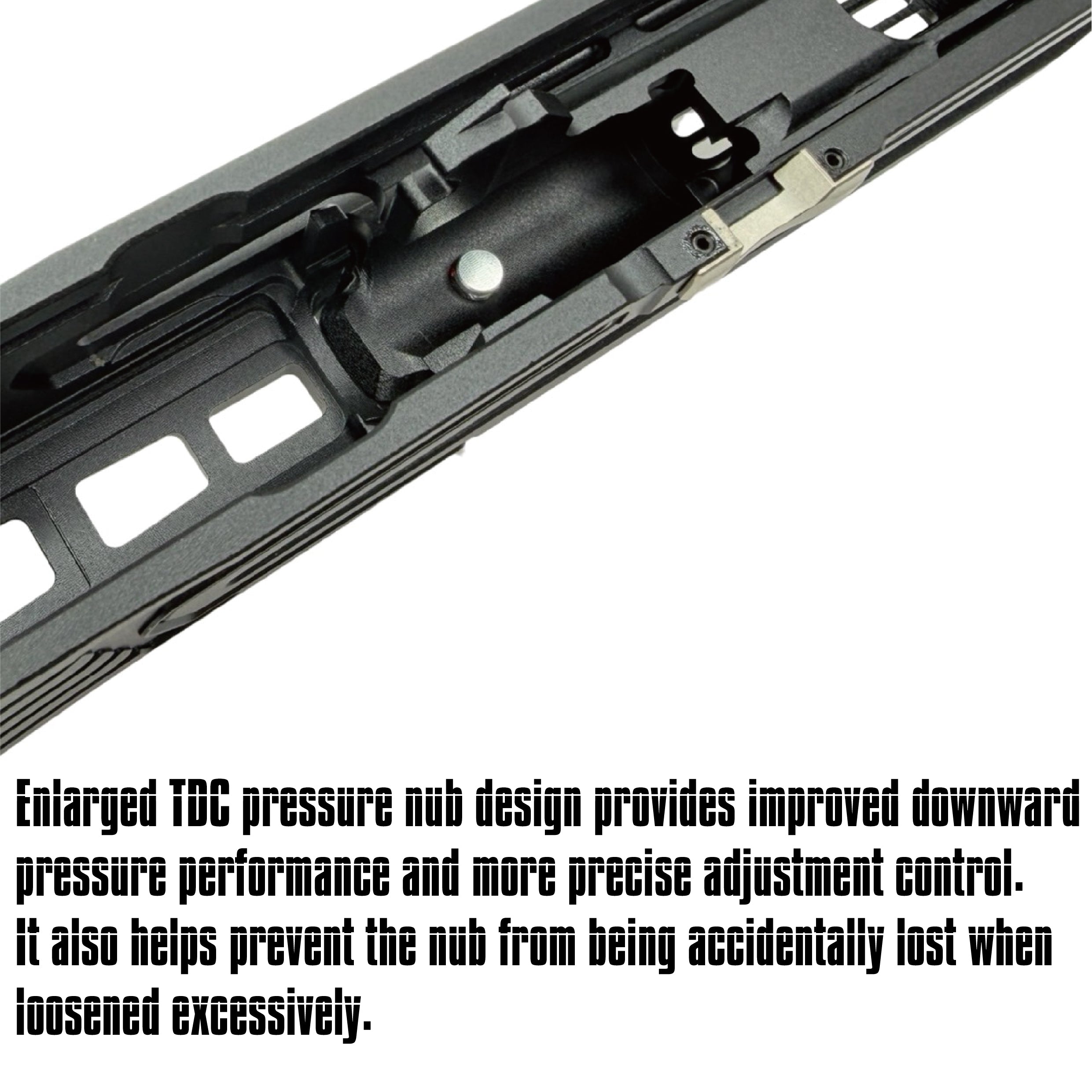

• Enlarged TDC pressure nub for improved downward pressure and precise adjustment control.

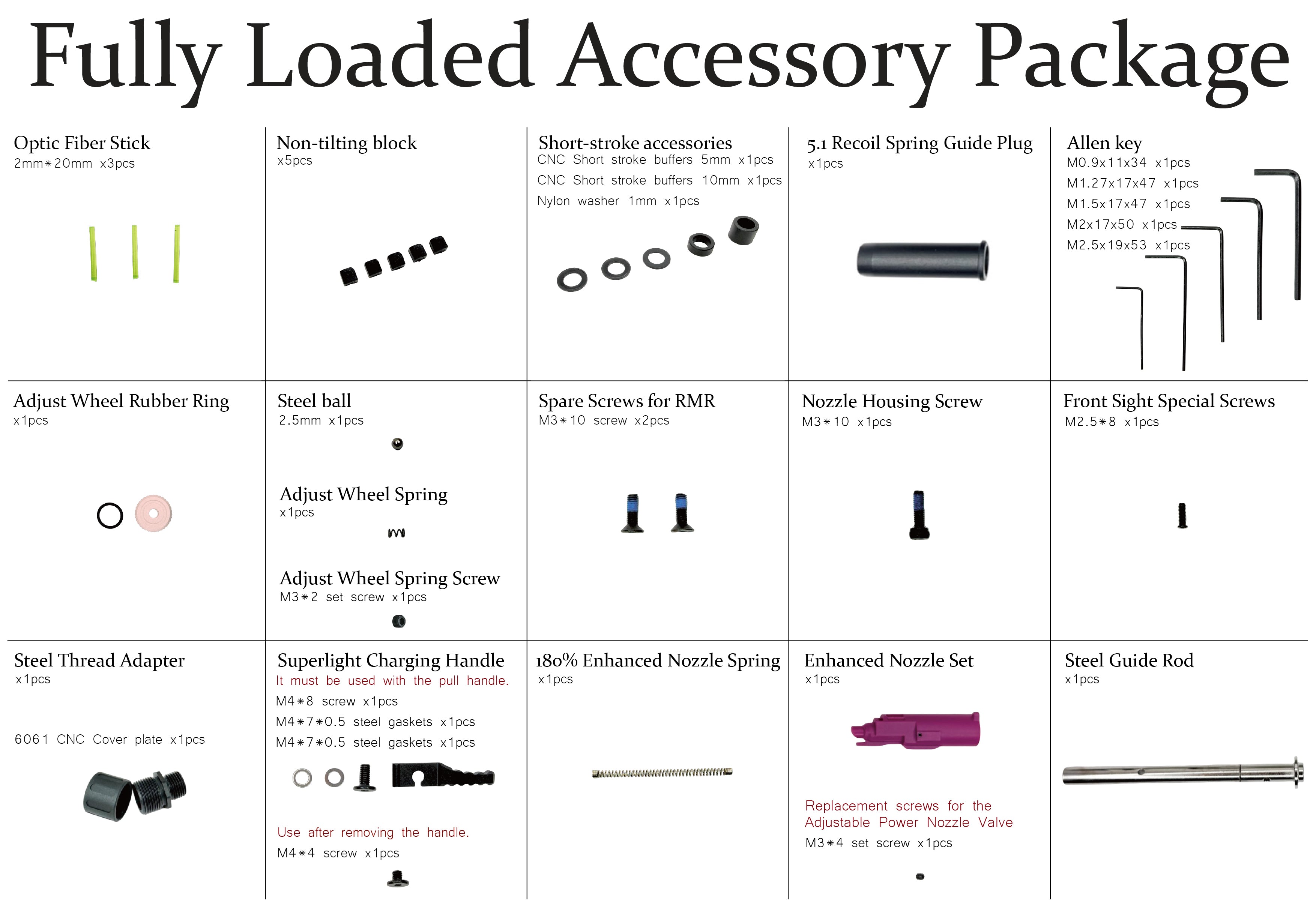

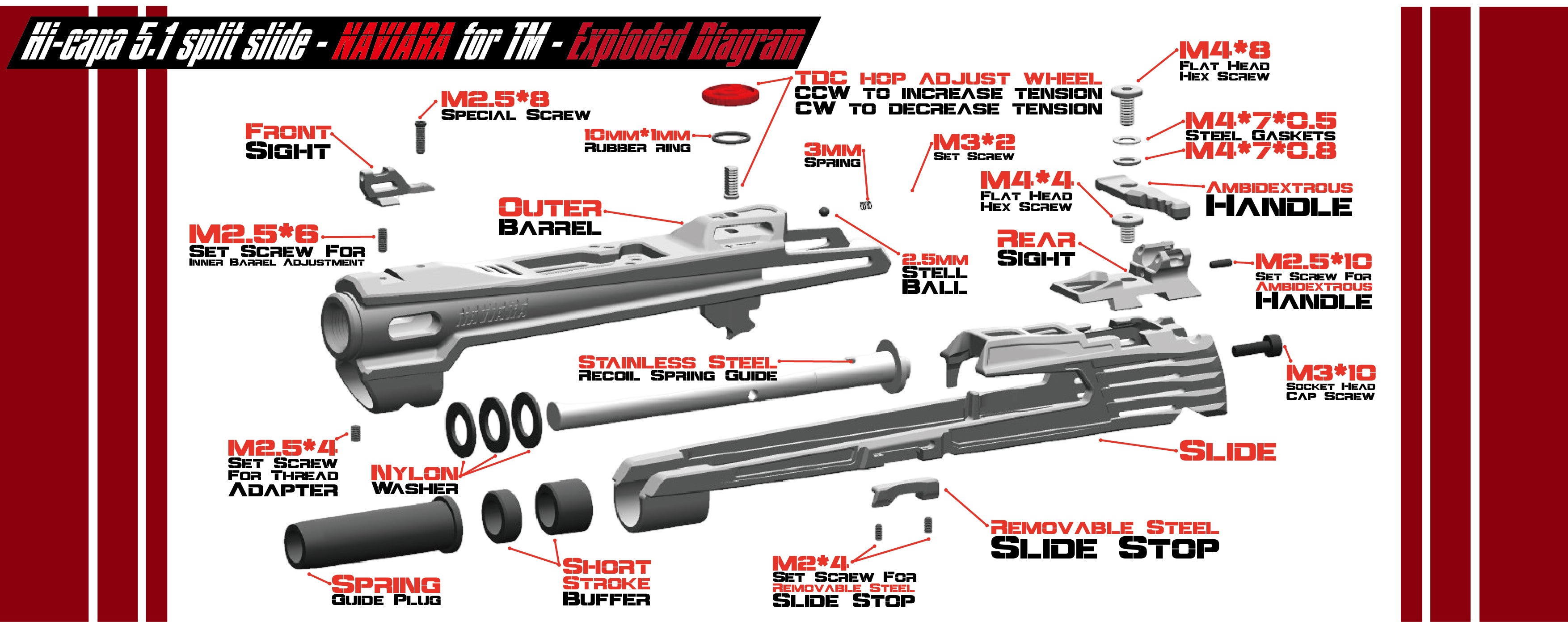

Package Contents

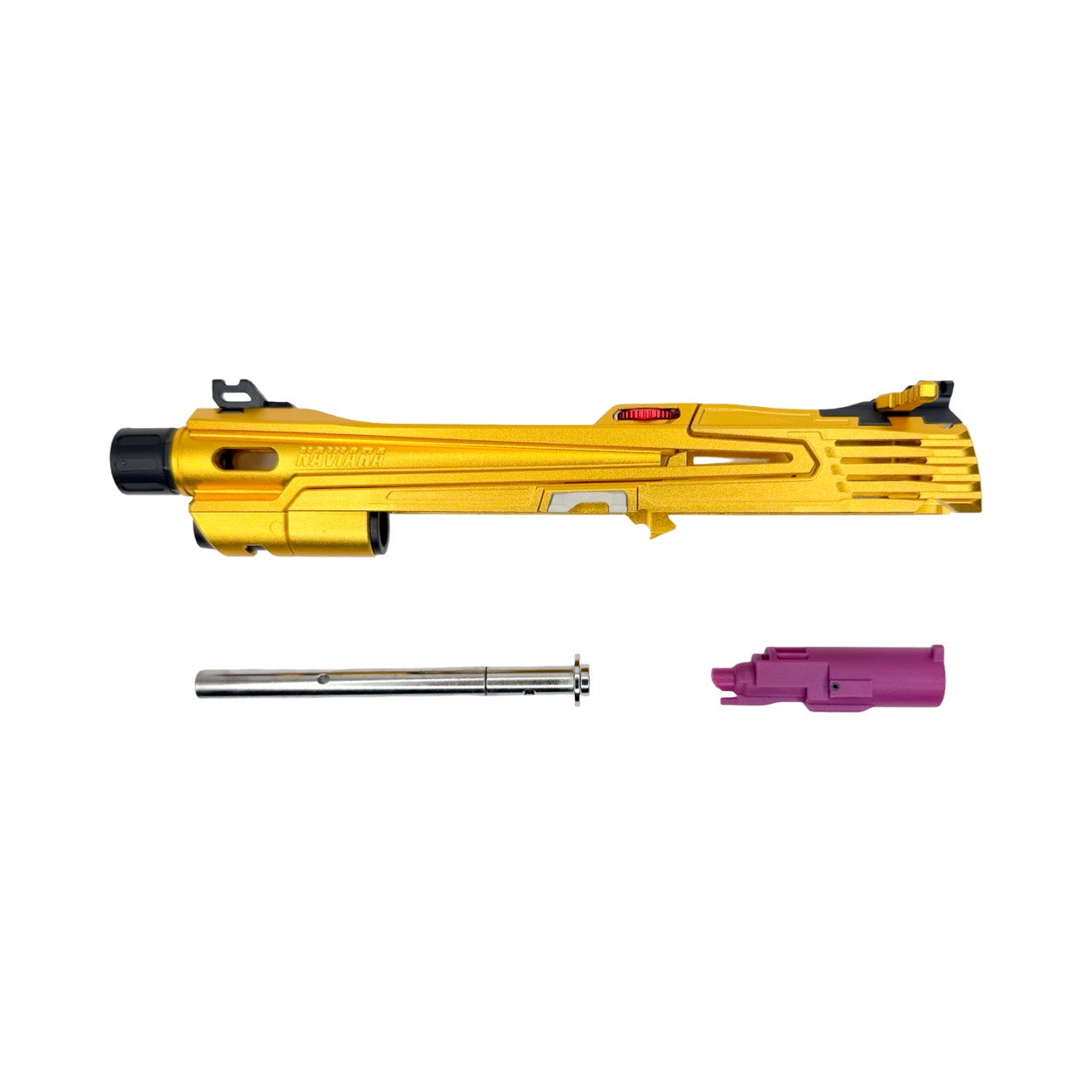

• CNC Superline 5.1 Outer Barrel x1 (with steel 11mm CW to 14mm CCW thread adapter, thread protector, front sight, TDC HOP adjust wheel + hardware, cover plate, spare RMR screws)
• CNC NAVIARA 5.1 Recoil spring guide plug x1
• CNC Steel Guide Rod for Hi-Capa 5.1 x1
• Enhanced Nozzle Set For TM Hi-Capa x1
• 180% Enhanced Nozzle Spring x1
• CNC NAVIARA 5.1 Slide x1 (with stainless steel slide stop + set screws)
• CNC Rear sight mount set x1
• CNC Superlight charging handle x1 (left/right interchangeable, with screws and steel gaskets)
• Non-tilting block x5
• 2mm x 20mm optic fibre stick x3
• CNC Short stroke buffers 5mm x1 and 10mm x1
• Nylon washer 1mm x3
• Assorted spare parts (TDC rubber ring, 2.5mm steel ball, front sight screws, nozzle housing screw)
• Allen keys: M0.9, M1.27, M1.5, M2, M2.5

Please note this product is not fully compatible with the Tokyo Marui Hi-Capa 5.1 / 4.3 D.O.R models. For optimal fit and performance, use with the following Tokyo Marui platforms:

• Hi-Capa 5.1 Government Model
• Hi-Capa 5.1 Gold Match
• Hi-Capa 5.1 Stainless
• Hi-Capa 5.1 Silver
• Hi-Capa 4.3 Tactical Custom
• Hi-Capa 4.3 Dual Stainless
