Action Army AAP-01 Replacement Part - Complete Upper - Tan

Price: £42.99

Tax included. Shipping calculated at checkout.
UK delivery from £4.50, free on orders of £125 or more.

Quantity

In stock and ready for shipping

Specifications

Fitment AAP-01

Type Upper

Colour Tan

Product Information

The upper half of a genuine Action Army AAP-01 in tan, supplied as a complete assembly rather than as individual parts.

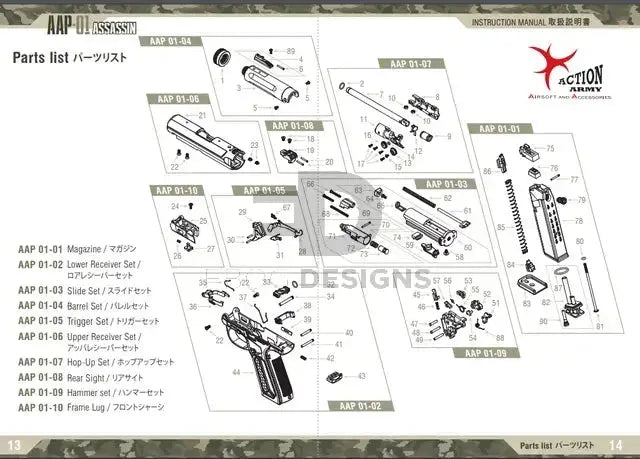

It contains every part in five sets on the AAP-01 parts diagram:

Upper Receiver Set (01-06): the upper receiver (part 21), the trigger housing side screws and the rear sight screw base.
Slide Set (01-03): the blowback housing, the nozzle assembly with its nozzle block, spring and screws, the piston head, the guide rod and recoil spring, and the selector switch, selector plate and screw.
Barrel Set (01-04): the outer barrel and thread protector, the front sight and its screw, and the hop chamber side fixings.
Hop-Up Set (01-07): the hop chamber (left side, right side, bottom and arm) with the inner barrel and bucking.
Rear Sight (01-08): the rear sight and its screws.

If only the receiver shell needs replacing, it is sold on its own as the Part 21 upper receiver in tan.

AAP-01 and AAP-01C uppers and lowers interchange, so this upper fits either model's lower.

It goes straight onto your existing lower as supplied, with nothing to move across from your old upper.

Every part is numbered on the AAP-01 parts diagram, which links them to the individual spares. If you are upgrading rather than repairing, the AAP-01 upgrade guide covers what to change first.

Condition: taken from new disassembled pistols. Parts may carry small marks or defects but are unused, and arrive in plain packaging.

Fitment: Action Army AAP-01 and AAP-01C.

Fitting & Returns

Replicas vary between makers and production batches, so a part can sometimes need work to fit. If you're not confident fitting it yourself, we recommend using an airsoft tech. Not sure a part suits your replica? Email info@ebog-designs.co.uk before you order.

Unfitted, unmarked parts in their original packaging can be returned for a full refund if you ask within 30 days of receiving them. Fitted or altered parts usually can too, less a deduction for any loss in value. Made-to-order items and gift cards have different return rules.

If a part is faulty, not as described or not what you ordered, there's no deduction, even if you've fitted it. Damage from incorrect fitting after delivery isn't a fault, unless it was caused by wrong or incomplete instructions, whether they came with the part or from us. Full details are in our Refund Policy.

Upgrade parts are sold for use within the legal power limits that apply where you are.

Finishes can vary slightly between batches, and colours can look different on screen.

None of this affects your statutory rights.
