CTM - NAVIARA TM Hi-Capa 4.3 CNC Split Slide - Black (Inc. Enhanced Nozzle, Short Stroke Kit, Springs + More)

• Material: 6061 Aluminium
• Weight: 140g
• Colour: Black

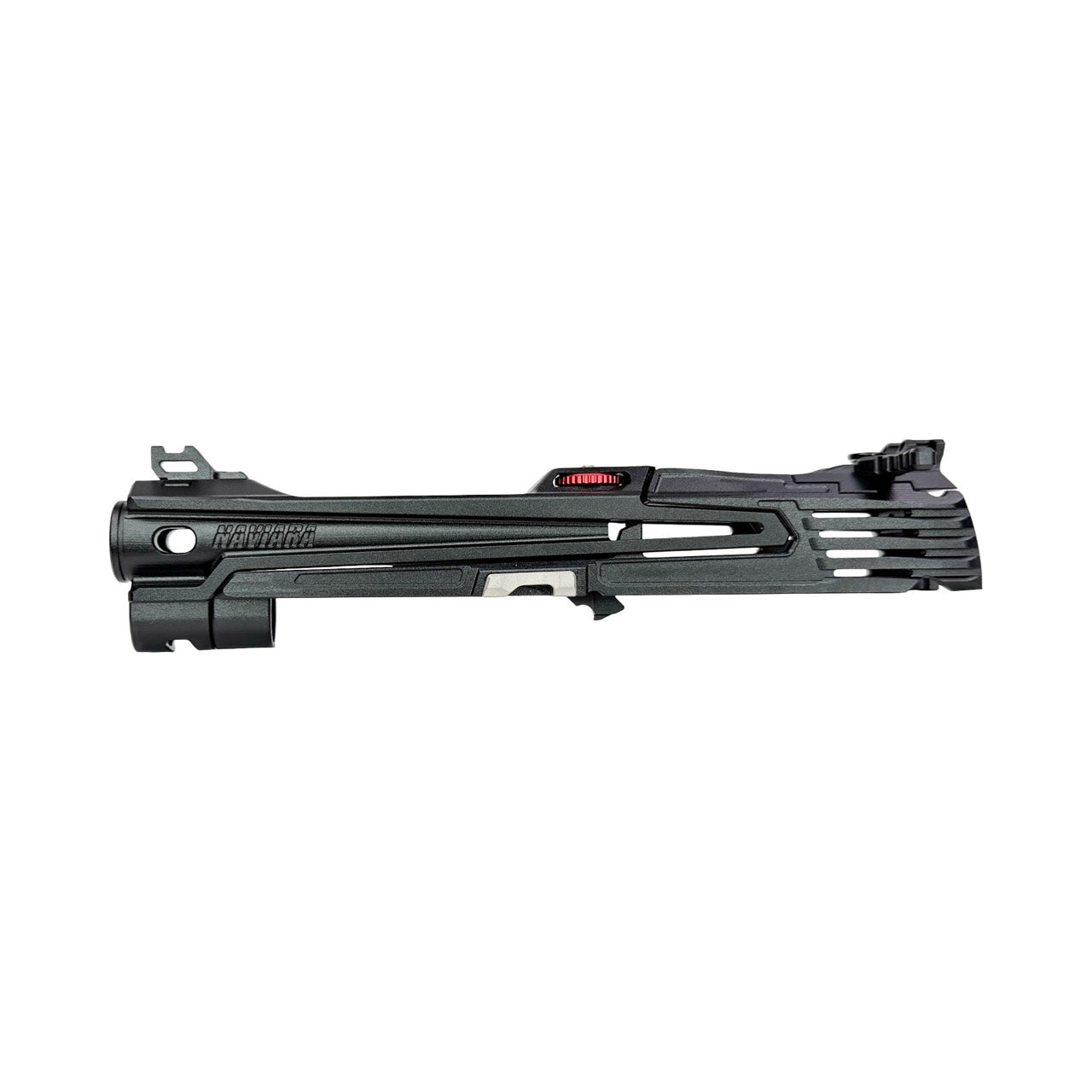

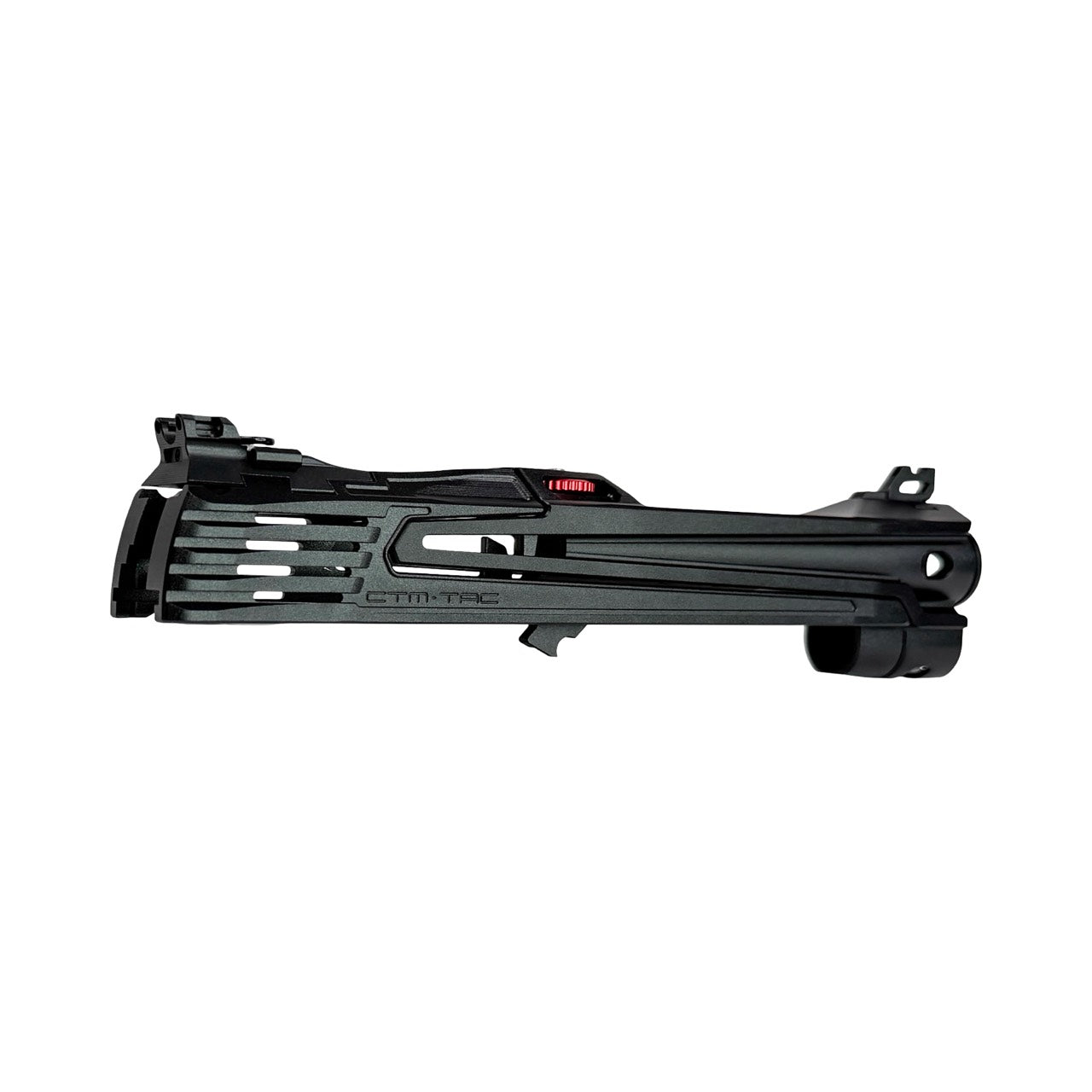

The 4.3 version of CTM's NAVIARA split slide for the Tokyo Marui Hi-Capa. Only the rear section of the slide moves; the outer barrel stays fixed, so the moving weight is low, the gun cycles fast and a red dot on the integrated optic plate stays on the barrel rather than riding the slide. Like the 5.1 NAVIARA, it comes as a complete kit.

Features

• High-precision 6061 CNC aluminium.
• Split-slide and fixed barrel design, lightweight and agile.
• TDC wheel for easy, precise hop adjustment, with an enlarged pressure nub.
• Detachable ambidextrous charging handle.

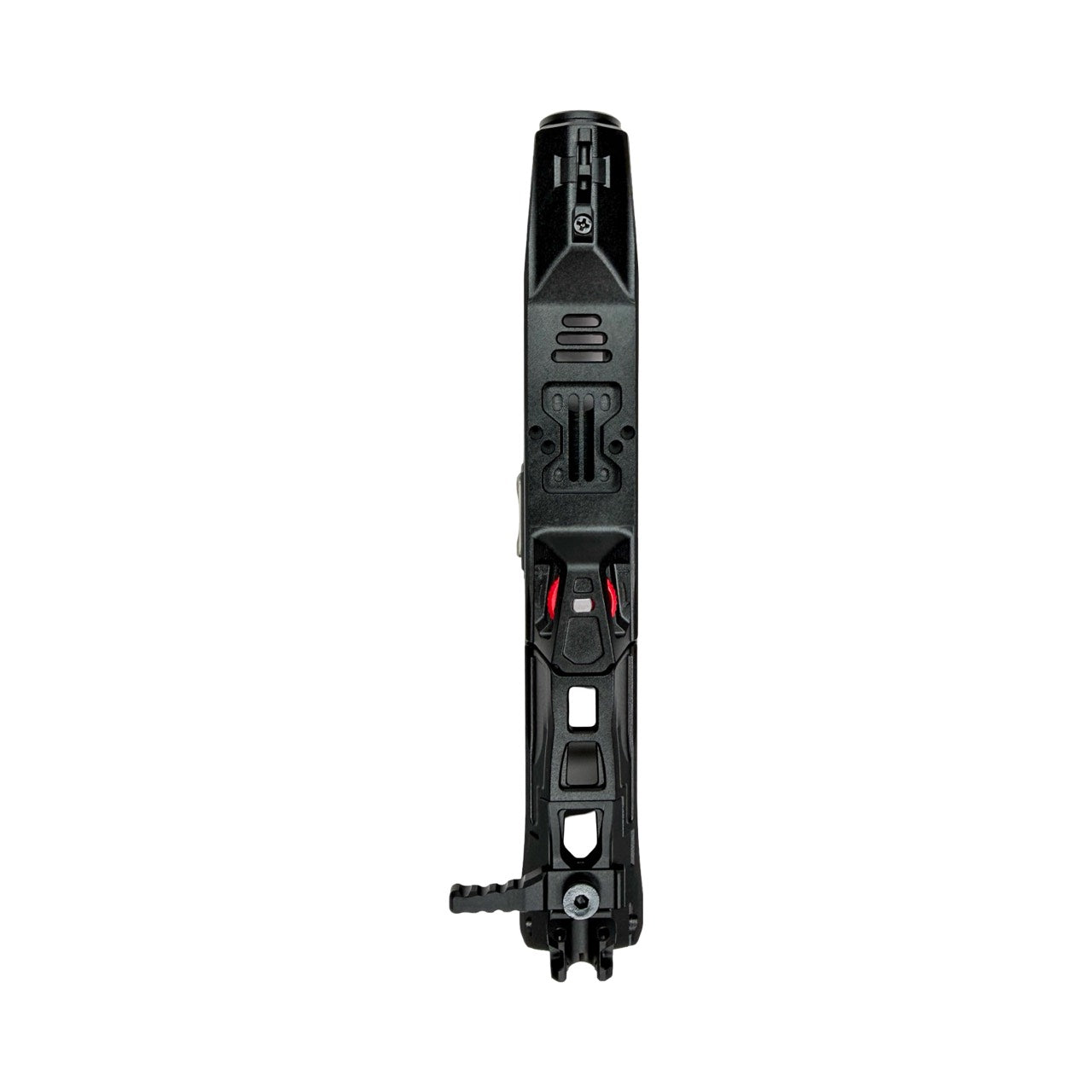

• Integrated optic plate on the outer barrel for an absolute co-witness sight picture.

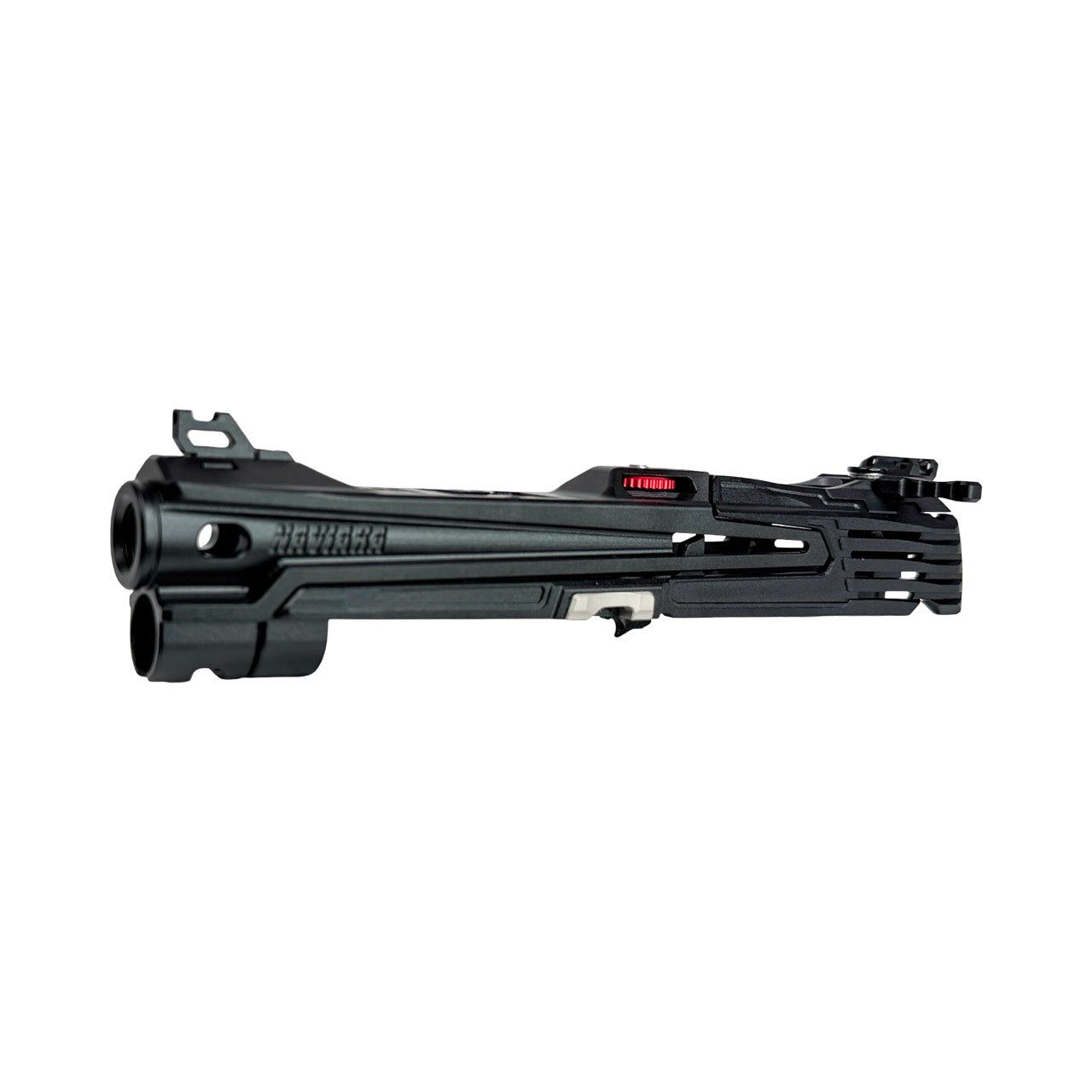

• 11mm muzzle with a 14mm CCW to 11mm CW stainless steel adapter and a thread cap. Note: take out the set screw before removing the thread adapter.
• Half-ghost ring sight, and compatible with Tokyo Marui original iron sights.
• Compatible with the original Tokyo Marui 5.1 / 4.3 spec middle frame.
• Short stroke kit, enhanced nozzle and 180% enhanced nozzle spring included. Note: always install the short stroke kit with the NAVIARA.
• Non-tilting block design stops the outer barrel tilting.

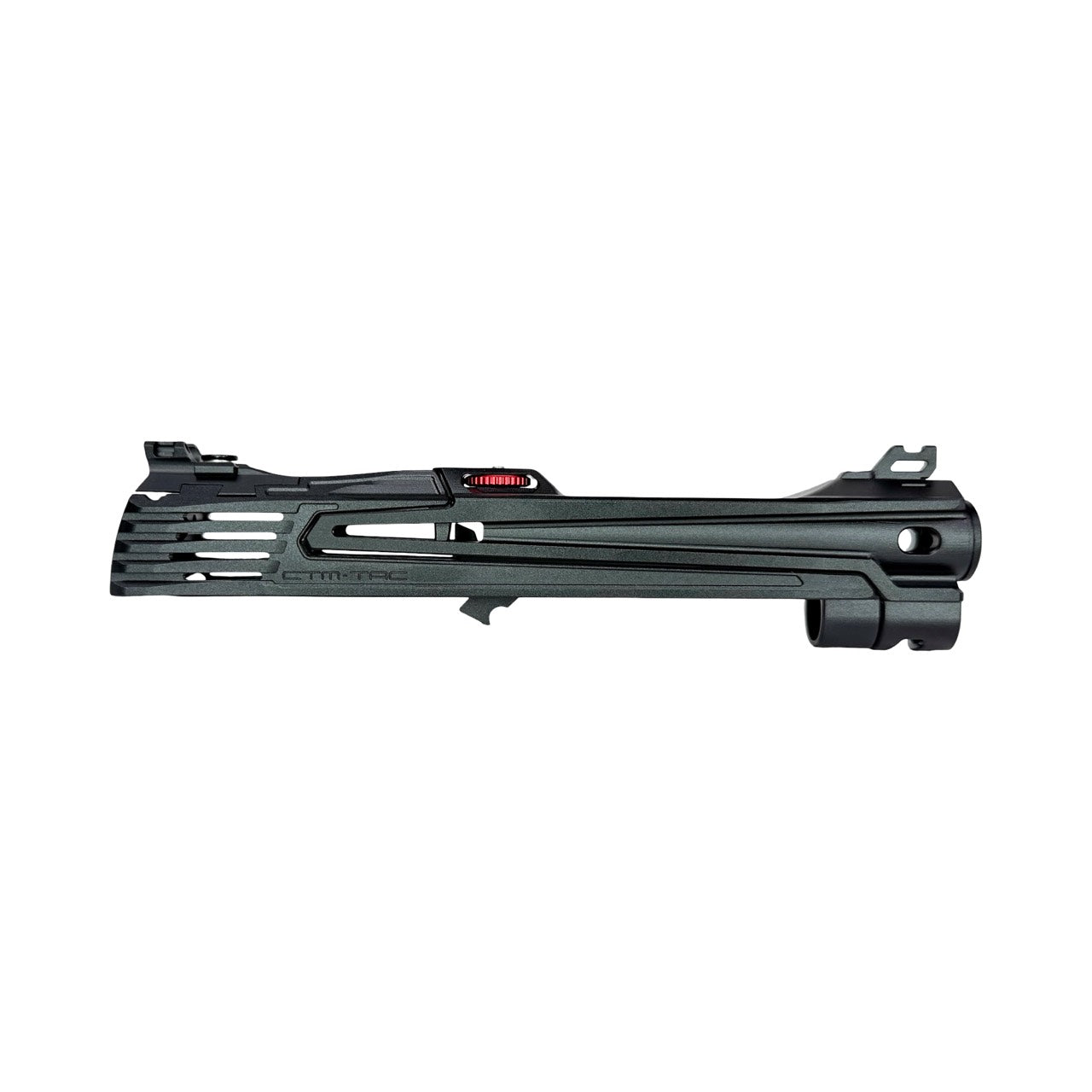

• Curved rear serrations for racking by hand or with the charging handle.
• Removable stainless steel slide stop.

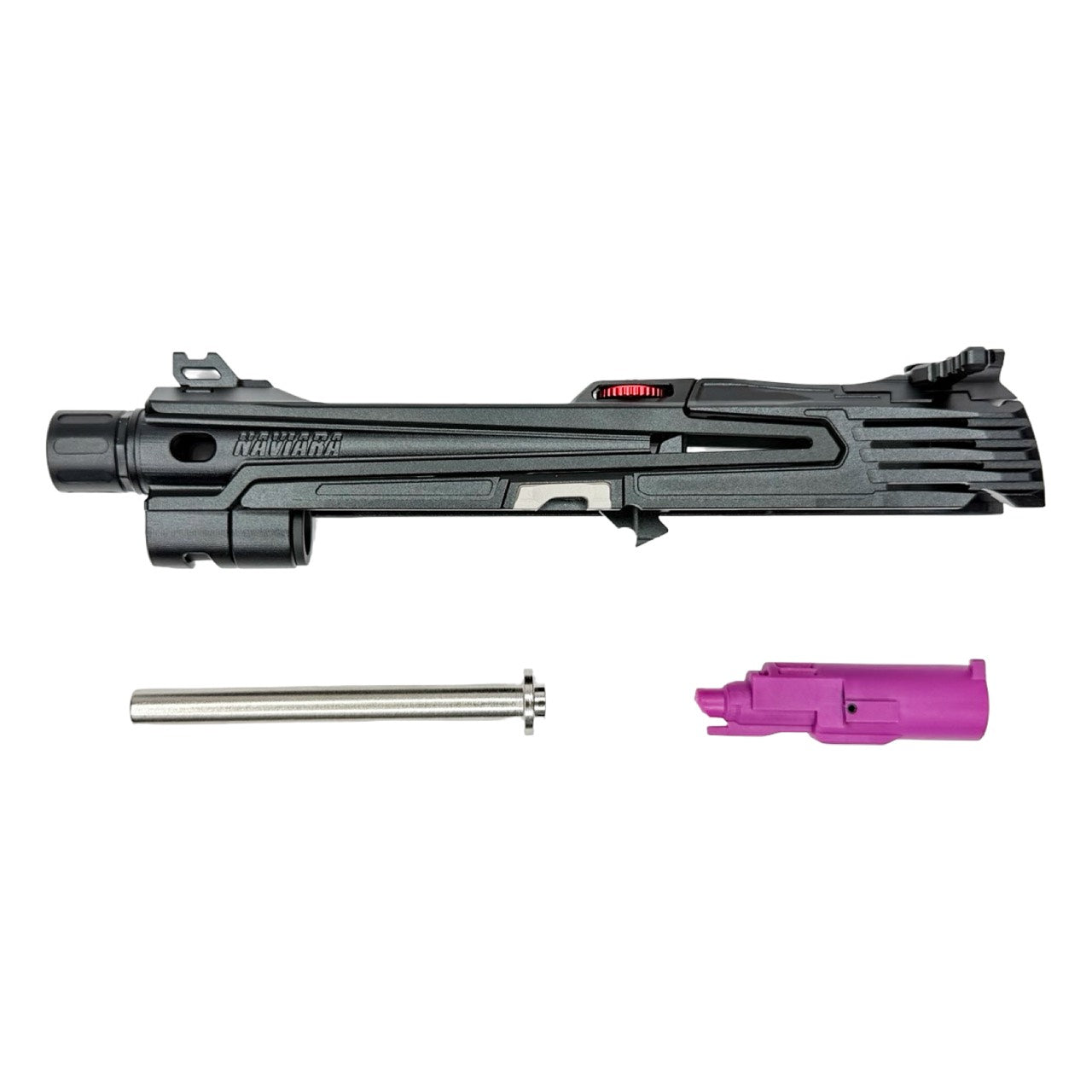

Package Contents

• CNC Superline 4.3 outer barrel x1 (with steel 11mm CW to 14mm CCW thread adapter, thread protector, front sight, TDC hop adjust wheel + hardware, cover plate, spare RMR screws)
• CNC NAVIARA 4.3 recoil spring guide plug x1
• CNC steel guide rod x1
• Enhanced Nozzle Set For TM Hi-Capa x1
• 180% enhanced nozzle spring x1
• CNC NAVIARA 4.3 slide x1 (with stainless steel slide stop + set screws)
• CNC rear sight mount set x1
• CNC superlight charging handle x1 (left/right interchangeable, with screws and steel gaskets)
• Non-tilting block x5
• 2mm x 20mm optic fibre stick x3
• CNC short stroke buffers 5mm x1 and 10mm x1
• Nylon washer 1mm x3
• Assorted spare parts (TDC rubber ring, 2.5mm steel ball, front sight screws, nozzle housing screw)
• Allen keys: M0.9, M1.27, M1.5, M2, M2.5

Fitting notes: with some aftermarket nozzle housings, about 2mm may need removing from the charging handle screw, so CTM recommend a qualified tech for that. The outer barrel doesn't touch the middle frame, so a slight wobble is normal.

Please note this product is not fully compatible with the Tokyo Marui Hi-Capa 5.1 / 4.3 D.O.R models. For optimal fit and performance, use with the following Tokyo Marui platforms:

• Hi-Capa 4.3 Tactical Custom
• Hi-Capa 4.3 Dual Stainless
• Hi-Capa 5.1 Government Model, Gold Match, Stainless and Silver

CTM part number: CTM-HUR-1400
