Hadron Designs - AAP-01 Loki Hop Chamber Unit - Green

Price
£49.99
Tax included. Shipping calculated at checkout.
UK delivery from £4.50, free on orders of £125 or more.
Out of stock

Specifications

Fitment AAP-01
Type Hop Chamber
Colour Green

Product Information

One piece CNC Alloy construction outer body for total precision, tested with all leading buckings, and good quality un-bridged GBB barrels. The outer body contains the drilling guide for installation into your chosen AAP upper. No need for extra drill guide purchases. We even supply the correct size drill bit for you to use.

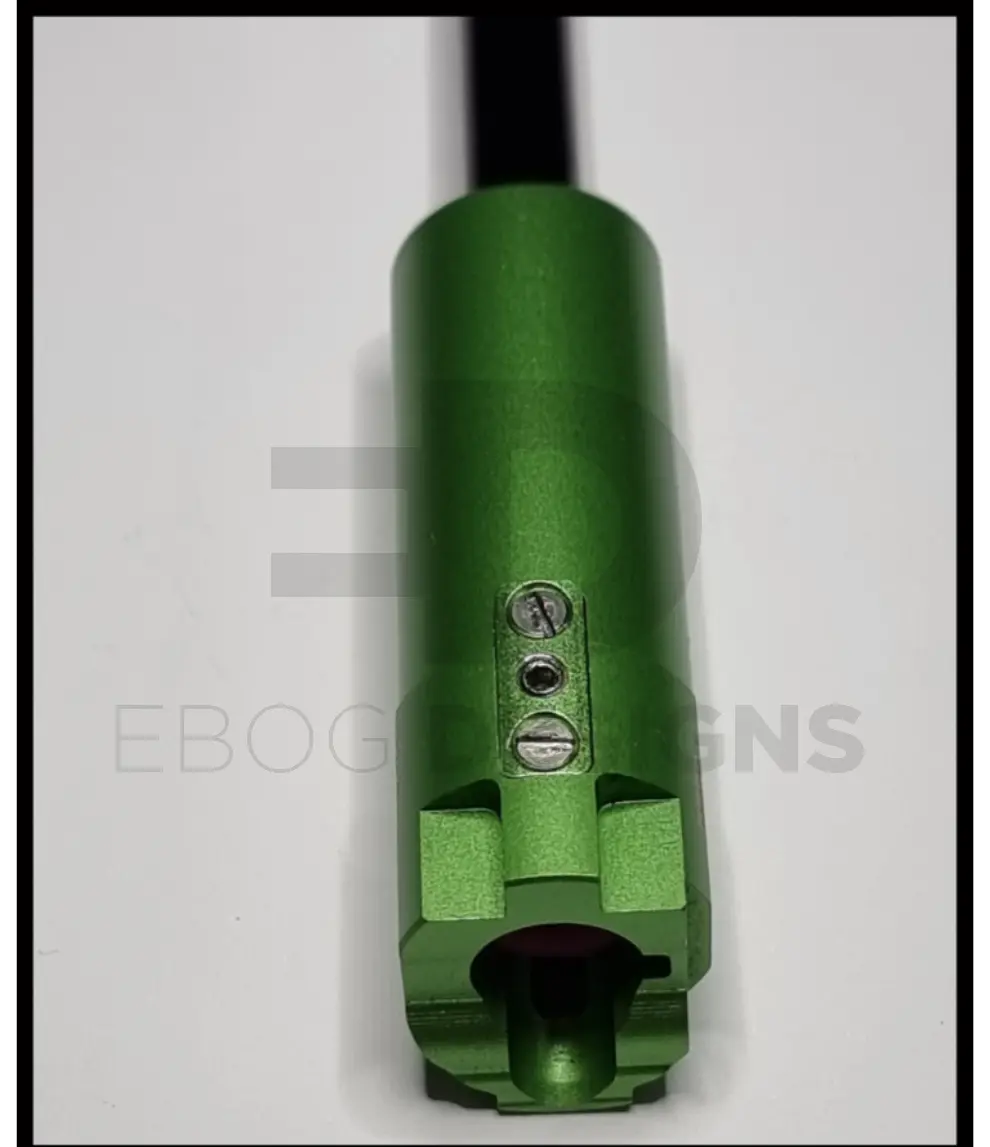

This Loki hop chamber for the AAP-01 is green.

The “Loki” locking plate, is a metal laser cut retaining device, which prevents rotation or self-adjustment of the TDC screw during use, and most especially, sustained 35 rounds per second use.

The Hadron Airsoft Designs “Loki” nub is based upon the awesome H-Arm V2 profile, which is still king of the Mk23 hop plates. The nub uses RNT (Recessed nub technology). We push the nub from the bottom surface, not the top. This makes the nub more stable and secure during heavy, or light use.

The inner barrel is aligned by the GBB bucking and secured by two nylon tipped grub screws. Do not overtighten these. The barrel and bucking is placed into the hop unit from the rear, after the hole is drilled in the upper. Always check for debris from drilling before assembly.

The “Loki” hop unit has been tested in various carbine kits, including TTI. SRU Vector, AA Mamba, and many others. To drill the TDC hole, simply assemble upper and bolt in the empty hop unit as per the tutorial video and drill through. Please use a drill press where possible for accuracy.

Full fitting and installation video is available here:-

Install Video

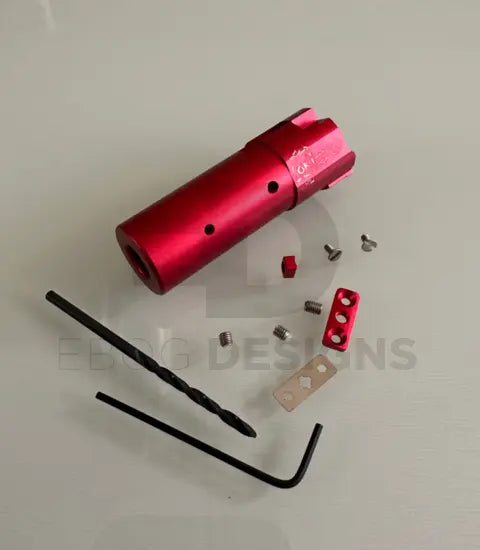

Kit contents: -

1 x Loki outer body

1 x Loki upper plate

1 x Loki locking plate

1 x Loki RNT Nub

2 x Countersunk flat head screws

2 x Nylon tipped grub screws

1 x 5mm TDC grub screw

1 x 6mm TDC grub screw

1 x 2.5mm drill bit

1 x Allen key

Related categories

Fitting & Returns

Replicas vary between makers and production batches, so a part can sometimes need work to fit. If you're not confident fitting it yourself, we recommend using an airsoft tech. Not sure a part suits your replica? Email info@ebog-designs.co.uk before you order.

Unfitted, unmarked parts in their original packaging can be returned for a full refund if you ask within 30 days of receiving them. Fitted or altered parts usually can too, less a deduction for any loss in value. Made-to-order items and gift cards have different return rules.

If a part is faulty, not as described or not what you ordered, there's no deduction, even if you've fitted it. Damage from incorrect fitting after delivery isn't a fault, unless it was caused by wrong or incomplete instructions, whether they came with the part or from us. Full details are in our Refund Policy.

Upgrade parts are sold for use within the legal power limits that apply where you are.

Finishes can vary slightly between batches, and colours can look different on screen.

None of this affects your statutory rights.
